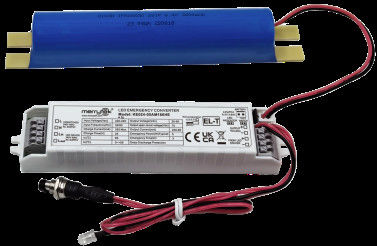

Battery Included 5 Years Warranty 3W 3-hour LED Emergency Converter
Constant power output LED emergency power supply with manual test and self-test options. Features wide output voltage range, input relay switching, and high-performance LifePO4 battery with 5-year warranty.
Product Features
- Constant power output LED emergency power supply with wide output voltage range
- Input relay switching
- High safety, high performance, long life LifePO4 battery
- Integrated battery management system
- Manual test and automatic test selection options
Technical Parameters
| Charge Part | KE024 | 02AM180HE | 03AM180HE | 04AM180HE | 05AM180HE |
|---|---|---|---|---|---|
| Rated input voltage | 220-240Vac 50Hz/60Hz | ||||
| Rated input current | 0.06A Max. @230Vac | ||||
| Input inrush current | 10A(Twidth=100us 50% Ipeak )@230Vac(Cold start at full load) | ||||
| Power factor | ≥0.5@230Vac | ||||
| Input power | <4W@230Vac | ||||
| Battery charging current | 250mA | 250mA | 350mA | 350mA | |
| Battery charging time | 24 hours Max. | ||||
| Emergency Part | Emergency mode | ||||
| Load type | LED | ||||
| Emergency power | 2W | 2.5W | 4W | 5W | |
| Emergency time | 3 hours | ||||
| Load output current | 100-30mA | 125-41mA | 200-65mA | 250-80mA | |
| Load output voltage | 20-60Vdc | ||||
| Battery | 6.4V 1.8Ah | 6.4V 1.8Ah | 6.4V 3.6Ah | 6.4V 3.6Ah | |
| Battery warranty | Warranty 5 years @5~60℃ | ||||
Exception Driver Requirements
| Surge current | 8A |
| Input current | 3A Max. |
| Output current | 2A Max. |
LED Indication (Manual Test)
| Charging | Green light |
| Fault | Green light off |
Emergency Function Test
| Manual test | Default |
| Auto test | Settable |
Auto Testing Status Indicators
| Fault/Test Status | Reason | Charge Indicator Status |
|---|---|---|
| The battery is fully charged and operational | Standard daily use | Solid green |
| Battery Charging | Initial Charge/Battery Top Up | Flashing green 1 sec on 1 sec off |
| Auto Test 3 Hours (every 12 months) | Periodic self-test | Flashing Green 3 sec on 1 sec off |
| Auto Test 5 Min (every 30 days) | Periodic self-test | Flashing Green 3 sec on 3 sec off |
| Duration test fault | Automatic test failed | Flashing Red 0.5 sec on 0.5 sec off |
| LED fault | Not plugged in or damaged/faulty | Flashing Red 2 sec on - 2 sec off |
| Battery Disconnected/Faulty | Not plugged in or damaged/faulty | Solid red |
Emergency Protection
| Battery over-charge/deep discharge protection | Yes |
| Output over-voltage protection | Yes |
| Output overload protection | Yes |
| Output short circuit protection | Yes |
Operating Environment
| Operating temperature/humidity | 0℃…+50℃, Humidity: 20%-75%(without condensation) |
| Storage temperature/humidity | -5℃-35℃ |
| Case Max. Temp(Tc) | 75℃ |
Safety & EMC Standards
| Withstand voltage | 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-") |
| Safety standard | EN61347-1, 60598-2-22, 61347-2-7, 62034 |
| EMC standard | EN55015, EN61000-3-2, EN61000-3-3 |
| Battery standard | UN38.3 |
| Environmental protection requirements | Compliant with RoHS |
| Certification | CE |
Additional Specifications
| Input/output(terminal/wiring) specification | Press terminal, wire diameter: 0.5-0.75mm² |
| IP rating | IP20 |
| Type of protection | Class 2 |
| Installation type | Built-in installation |
| Installation dimension | 146×30×22.5mm |
| Packaging requirement | White box+Instruction manual+clapboard+outer carton(K=A) |
| Weight | 75g (driver) |
| Lifespan | 5 Year @Ta |
Note: All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
Battery Dimensions
Fig A. Battery Dimension
Fig B. Battery Dimension
Fig C. Battery Dimension
Fig D. Battery Dimension
Converter Dimensions
Wiring Diagrams
OR
Manual Test and Auto-test Switch
Wire Preparation
- Solid or Stranded wire type: 0.5 - 0.75 mm²
- To access or remove the wires from the terminals, use a screwdriver to push the buttons down
Manual Test & Operation Instructions
- Before installation, set Pin short: Manual Test.
- Connect the wire according to the wiring diagram.
- L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light will turn green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off.
- Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on.
Automatic Test & Operation Instructions
- Before installation, set the pin open for the automatic test.
- Connect the wire according to the wiring diagram.
- L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time.
Battery Application Notice
- The battery should be recharged and discharged semiannually in normal use conditions.
- Do not connect to the circuit when the battery is not used to prevent over-discharging of the battery due to self-consumption of the circuit board.
- Please keep the battery away from the heat source when installing and using it, and only allow it in a certain working temperature range.
- The battery should be stored in a cool and dry environment.
- After a long time of storage, the battery is cycled every 12 months as required.
- AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time.
