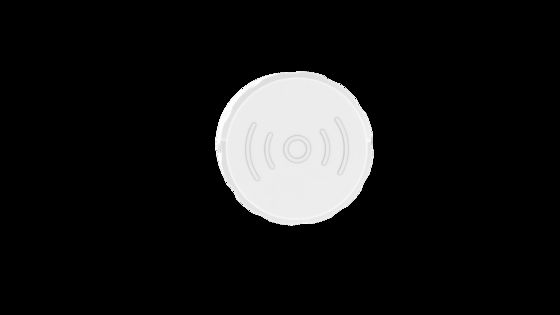

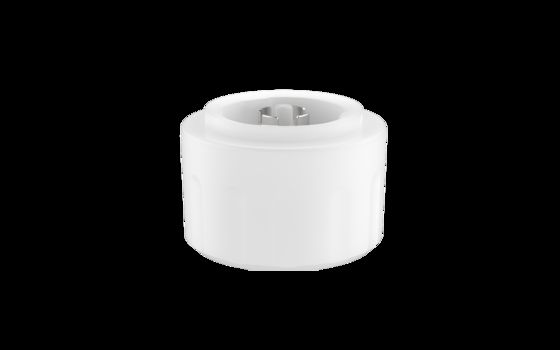

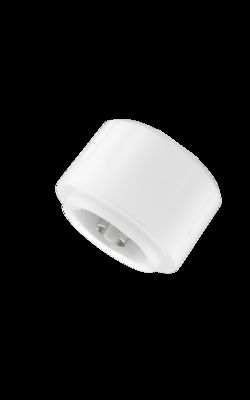

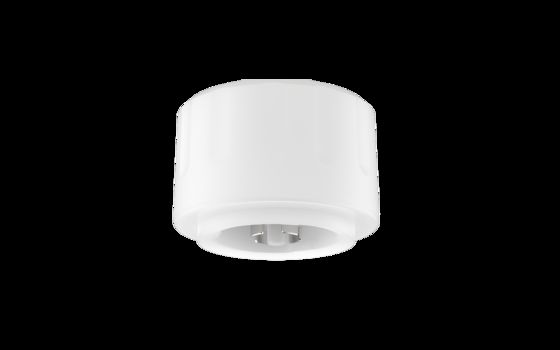

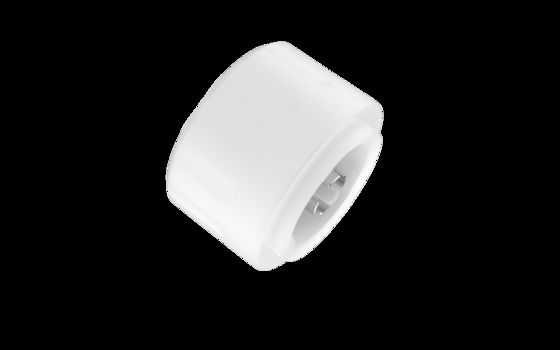

Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 입력 전압 | 11-13VDC | 작동 전류 | 40±5mA |
|---|---|---|---|
| 잔물결 전압 | <100mvp-p | 출력 신호 | 0 -10VDC 디밍 신호 |
| 작업 빈도 | 5.8GHz ±75MHz, ISM 대역 | 기준 치수 | TUYA 블루투스 모듈 |
| 강조하다 | Tuya 12Vdc wireless motion sensor,Zhaga Book18 high bay sensor,12m max height wireless sensor |
||
제품 설명
Tuya 12Vdc Wireless Networking High Bay Sensor
12m Max Mounting Height, Zhaga Book18 interface
Product Description
Tuya App Setting 0-10V Wireless Networking Sensor for Warehouse With 12M Installation
Product Features
- Patented high-gain microwave sensor, high anti-interference ability, no false trigger in metal installation site, especially designed for warehouse
- 12V DC input, for DC systems or LED power supplies with 12V DC auxiliary power output
- Using TUYA Bluetooth IOT module and supporting TUYA devices interconnects
- PWM high/low level, 0-10V dimming, 2-step dimming and 3-step dimming function
- Match Zhaga Book 18 base, plug-in design, waterproof
- Daylight priority function
- 12m maximum installation height, suitable for most warehouses
Technical Parameters
| Input | |
|---|---|
| Input Voltage | 11-13VDC |
| Operating Current | 45±mA |
| Ripple Voltage | <100mVp-p |
| Output | |
| Dimming Signal | 0-10VDC dimming signal |
| Sensor Parameters | |
| Operating Frequency | 5.8 GHz ±75 MHz,ISM wave |
| Transmitting Power | 3mW Max |
| Detection Area | 25%/50%/75%/100% Set by remote control or APP |
| Hold Time | 5s/30s/1min/3min/5min/10min/20min/30min Set by remote control or APP |
| Stand-by Period | 0s/10s/1min/3min/5min/10min/30min/+∞ Set by remote control or APP |
| Daylight Sensor | |
| Daylight Threshold | 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
| Daylight Priority | ON | OFF 5lux/15Lux/30Lux/50Lux | 150Lux 100Lux | 200Lux 150lux | 300Lux |
| Stand-by DIM Level | 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V) Set by remote control or APP |
| Detecting Area (100% sensitivity radius) | Ceiling Mounting(height: 10m): r≥4m@0.3m/s, r≥3m@1m/s; Wall Mounting(height: 2m): d≥23m@0.3m/s, d≥14m@1m/s |
| Mounting Height | Typical value: 10m (12m Max) |
| Wireless Parameters | |
| Module Name | TUYA Bluetooth Module |
| Operating Frequency | 2.4-2.484GHz |
| Transmitting Power | 10dBm(max:10.5dBm) |
| Transmitting Distance | 15m(visible distance) |
| Wireless Standard | Low power Bluetooth 4.2/5.0 |
| Environment | |
| Operating Temperature | -25~60℃ |
| Storage Temperature | -40℃…+80℃ Humidity≤85% (non-condensing) |
| Certification Standards | |
| Certificate | CE |
| Environmental Requirement | Compliant to RoHS |
| IP Rating | IP65 |
| Other | |
| Wiring Method | Suitable for Zhaga Book 18 connector |
| Installation | Build-in |
| Dimension | See Dimension diagram |
| Package | Clapboard + paper carton(K=A) |
| Lifetime | 5 years warranty@Ta |
Function Description
1) On/OFF Function (stand-by period be set to "0s")
2) 2-step dimming function (stand-by period be set to "+∞")
3) 3-step dimming function (stand-by period be set to "10s/1min/3min/5min/10min/30min")
4) Daylight priority((Set Stand-by Period to"DH Mode+5Lux/15Lux/30Lux/50Lux/100Lux/150Lux")
Product Information
Dimension (Unit:mm)
Wiring
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
Installation Instruction
Installation environment
Note: There should be no metal objects within 1.5 to 3m around the microwave sensor when installing, otherwise false trigger may be caused by reflection around the sensor.
Detection Range
Initialization & Networking
- When powering on for the first time, the sensor will turn the light on to 100% brightness, and the light will be turned off after 10 seconds. During initialization, movement signal will not be detected.
- Download TUYA APP on the phone, install and register. Open APP and connect Bluetooth gateway.
Default Setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%
Application Notice
- The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
- Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
- This product is suitable for ceiling mounting. If wall mounting, the detecting area will enlarge which makes microwave penetrate wall or light not turn off. Please lower the sensitivity area or contact the manufacturer for technical support. Daylight threshold is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The values illuminantion detected by sensor may vary in different environment, at different times, in different seasons, and in different climates.
- The parameters of the sensor may need to be connect again in different installation environments. Please refer to the following instructions or contact the manufacturer.
- This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.
- The mounting height is no more than 12. The best height is 10 meters. The distance between any sensors should be greater than 3m.
- When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed object, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
- Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer pipe, air outlet and so on. Otherwise the sensor may generate false trigger.
- Microwaves cannot penetrate metal. Do not place the sensor in a closed metal lamp or a half-closed metal lamp and no metal or glass cover above sensor.
- Different 0-10V driver, different low brightness.
- Require stabilized DC power supply with stable output voltage and low ripple, the power supply ripple should be less than 100mV, and the load current should be greater than 60mA.
- Due to continuous improvement, the contents of this instruction could be changed without prior notice.
