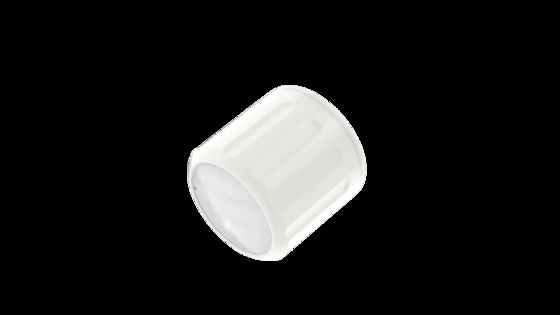

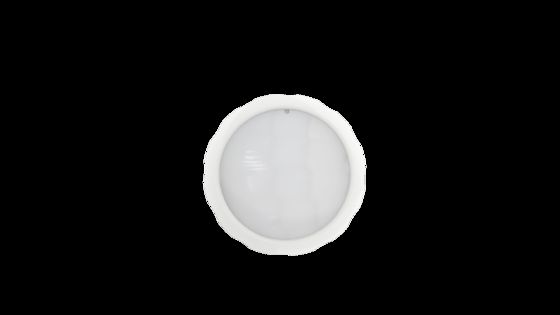

Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 정격 전압 | 12 ± 1VDC | 출력 신호 | 0 -10VDC 디밍 신호 |
|---|---|---|---|
| 탐지 모드 | PIR 감지 | 검출 범위 (반지름) | 2~4m (실내, 감도 100%, 센서에 직접 햇빛이 없습니다) |
| 설치 높이 | 전형적인 10m (12m 최대) | 작업 온도 | 0~35C |
| IP 등급 | IP65 | 일생 | 3년 보증 @Ta |
| 강조하다 | Mini PIR motion sensor with remote,Highbay PIR sensor 12m range,PIR motion detector remote control |
||
제품 설명
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available
Product Feature
- Earphone interface
- 12 meters maximum installation height, suitable for most warehouses
- Mini PIR motion detector for High Bay Lights
- IP65 design
- Sensor parameters can be adjusted by remote
- High mounting PIR sensor
Parameters
| Input | |
|---|---|
| Rated voltage | 12±1VDC |
| Operating Voltage | 12V DC |
| Ripple voltage | <100mVp-p |
| Output | |
| Output signal | √0 -10VDC dimming signal |
| Sensor parameters | |
| Detection mode | PIR detection |
| Daylight priority | Switch ON | 5Lux/15Lux/30Lux/50Lux | 100Lux | 150Lux Switch OFF | 150Lux | 200Lux | 300Lux |
| Dimming level | 10%, 20%, 30%, 50% |
| Detection range (radius) | 2-4m (indoor,sensitivity 100%,no direct sunlight to sensor) |
| Installation height | Typical 10m (12m Max) |
| Environment | |
| Working temperature | 0~35℃ |
| Storage temperature | -20℃~+80℃ Humidity: 10%-95% (non-condensing) |
| Certification standards | |
| Certified | UL 8750(Pending) |
| Environmental requirements | Comply with RoHS 2.0, Reach requirements |
| IP Rating | IP65 |
| Other | |
| Wiring | Earphone interface |
| Installation requirements | Mount center or side of highbay |
| Packaging requirements | Clapboard + Carton(K=A) |
| Net weight | 80g |
| Lifetime | 3 years warranty @Ta |
Function description
| Function | Setting |
|---|---|
| ON-OFF function | Stand-by Period be set to "0s" |
| 2-step dimming | Stand-by Period be set to "+∞" |
| 3-step dimming | Stand-by Period be set to "10s/1min/3min/5min/10min/30min" |
| Daylight priority | Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux" |
| Daylight harvesting | N/A |
Product Information
Dimension (Unit:mm)
Function
Wiring
MC079D IR DI
Installation Instruction
Detection Range
Remote
MH12
MH10
Initialization
After switch on power, sensor will be warmed 45-60s then start to work.
Default setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s
Application Notice
- The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
- PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
- Sensor may hard to detect people if wear thick clothes in cold winter.
- Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
- Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
- Due to continuous improvement, the contents of this instruction could be changed without prior notice.
- The dimming performance could be different when work with different 0-10V drivers.
- The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
- Detection distance is related to height of people, mounting height, mounting angle, working environment,and etc.
- Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
- This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
- When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
