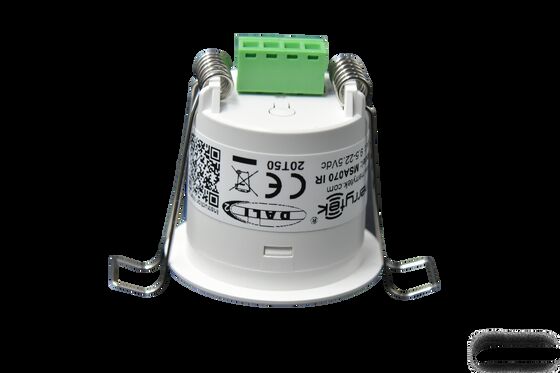

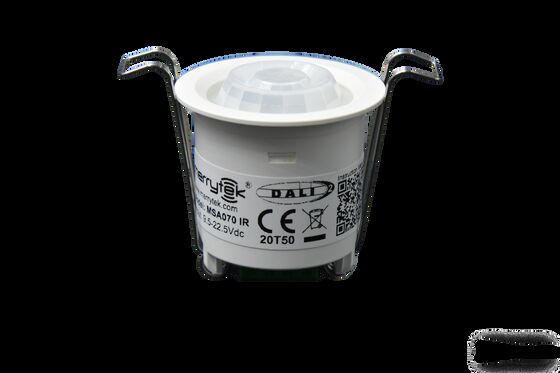

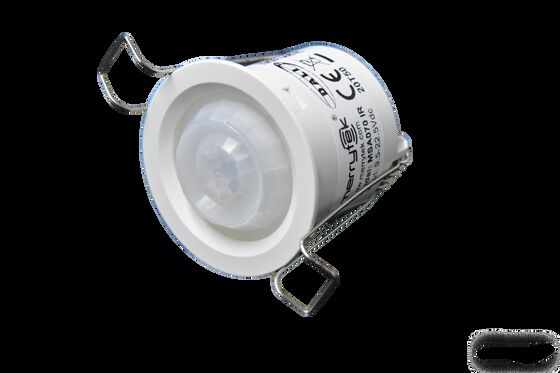

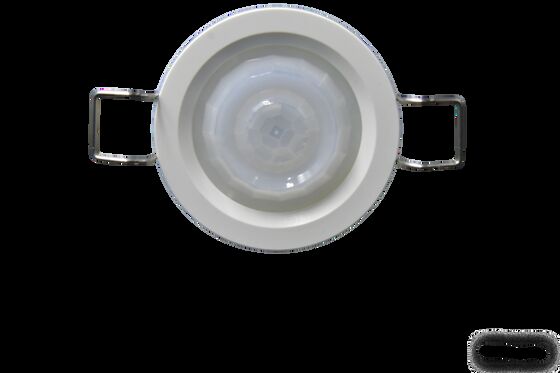

35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
제품 상세 정보
| 입력 전압 | 12-24VDC | 작동 전류 | 최대 20mA |
|---|---|---|---|
| 전력 소비 | 0.5W 이하 | 기능 | 무전압/건식 접점 출력 |
| 사용 가능 | 모션 감지, 일광 센서 | 장착 높이 | 2.5-4m |
| 설치 | 매립형 | 컷 사이즈 | φ35mm |
| 강조하다 | 35mm mini PIR motion sensor,12-24Vdc dry contact motion detector,compact PIR sensor with dry contact |
||
제품 설명
35mm Cut-Out Mini Motion Detector
Compact 35mm cut-out mini motion detector with 12-24V DC operating voltage and dry contact output mode, designed for discreet ceiling installation.
Key Features
- PIR infrared pyroelectric sensing technology
- Flat lens design for aesthetic appearance
- Accurate NO/NC dry contact output
- Ambient light detection capability
- Remote control setting of sensing range and delay time
- Maximum motion detection range: 8-10 meters diameter
- Ideal for hallway and toilet motion detection
- Concealed, recessed installation
- Ultra-small size blends seamlessly with ceiling
Technical Specifications
| Input/Output | |
|---|---|
| Input Voltage | 12-24V DC |
| Rated Voltage | 12/24V DC |
| Working Current | 20mA max |
| Power Consumption | ≤0.5W @12/24V DC |
| Output Signal | NO/NC dry contact (Factory setting: NO dry contact) |
| Sensor Parameters | |
| Function | PIR motion detection + daylight sensor |
| Detection Area | MH18 remote setting: 00%/75%/50%/25% |
| Hold Time | MH18 remote setting: 2s/30s/1min/3min/5min/10min/30min |
| Daylight Sensor Threshold | MH18 remote setting: 5lux/15lux/30lux/50lux/100lux/150lux/Disable |
| Radius Detection Range | Tangential moving at 3m height: 4-5m @25℃ (radial moving detection range shorter) |
| Remote Control | Available |
| Mounting Height | 2.5-4m (typical: 3m) |
| Application Environment | |
| Drill Hole | Φ35mm |
| Working Temperature | -25℃ to +50℃ (detection range varies with temperature) |
| Storage Temperature | -40℃ to +80℃ |
| Warranty | 3 years (for product quality issues in indoor applications) |
| Wire Standard | Wire diameter: 0.2-2.5mm, Stripping length: 7-8mm |
| Certificate Standard | |
| Certificate | Compliant with CE |
| Environmental Requirements | Compliant with RoHS |
| IP Rating | IP20 |
Note: "N/A" means not available.
Product Dimensions
Wiring Diagram
Detection Radiation Pattern
Detection Signal Information
The product detects human moving signals:
Moving signal: Detects significant human movement (walking) within the detection area.
Remote Control Options
Installation Guidelines
- Install by professional electrician in power-off state
- Maximum 4m height for indoor use only. Install away from hot or temperature-change-fast areas to avoid false triggers
- Ensure no large objects within detection area (sensor cannot detect through objects)
- Avoid strong-reflect objects, wifi routers, microwave ovens, etc., in front of sensor to prevent false triggers
- Detection range based on 25℃ environment temperature - range varies with temperature changes
- Detection optimized for tangential movement - radial movement detection range is shorter due to PIR characteristics
Product Disclaimer
Due to product technology complexity and application environment differences, this specification serves as reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees. Users are encouraged to supplement or modify specification contents based on their product experience.
