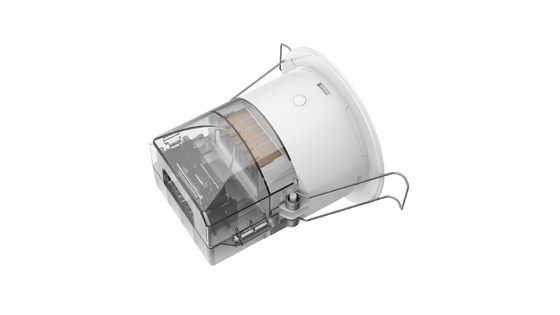

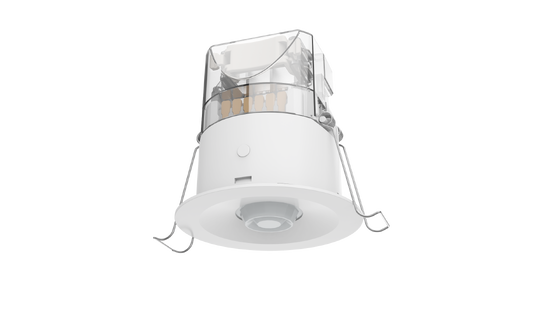

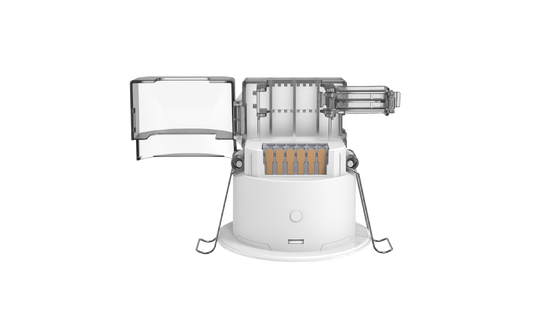

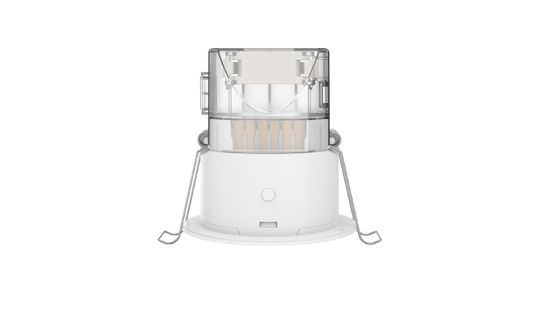

Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 입력 전압 | 100-240VAC | 작동 전류 | 최대 20mA |
|---|---|---|---|
| 소비전력 | 0.5W 이하 | 기능 | 1채널 ON/OFF + Casambi BLE 통신 |
| 사용 가능 | Casambi 무선 메쉬 PIR 감지기(릴레이 출력 포함) | 장착 높이 | 2.5-4m |
| 설치 | 매립형 | 컷 크기 | Φ65mm |
| 강조하다 | Casambi wireless PIR detector,mesh PIR motion sensor with relay,daylight harvesting PIR sensor |
||
제품 설명
Easy-use Series Casambi Wireless Mesh PIR Detector
Advanced PIR motion detection sensor with 360° ceiling mounting capability for automated lighting control in industrial and commercial environments. Features relay output and daylight harvesting function.
Key Features
- PIR motion detection technology
- Connect to the Casambi BLE ecosystem
- Accurate ON/OFF output control and Casambi communication
- Daylight priority and daylight threshold working modes
- Daylight learning function capability
- Detection area and hold time can be set by the Casambi app
- Maximum detection range: 10-14m diameter
- 2-4m mounting height
- Max load capacity: 1200W resistive loading and 600W inductive loading
- Corridor, passage motion detection application is highly recommended
- Flush mounting and surface mounting available
Technical Specifications
| Input/Output Parameters | |
|---|---|
| Input Voltage | 100-240V AC |
| Rated Voltage | 230V AC |
| Working current | 20mA max |
| Power Consumption | ≤0.5W @230VAC |
| Working Mode | 1 Channel ON/OFF + Casambi BLE |
| Surge Protection | 2KV(L/N, EN61000-4-5) |
| Surge Capacity | 30A (50% Ipeak, twidth=500us, 230Vac full load, cold start) |
| Load Capacity | 1200W resistive loading or 600W inductive loading |
| Sensor Parameters | |
| Function | PIR motion detection + daylight sensor |
| Detection Area | Casambi app setting: 100%/75%/50%/25% |
| Hold Time | Default setting 2s+ Linger time set by Casambi App |
| Daylight Sensor | Set by Casambi App under close Loop |
| Mounting Height | 2-4m (typical value: 3m) |
| Application Environment | |
| Drill Hole | Φ65mm |
| Working Temperature | -25℃ to +50℃ |
| Storage Temperature | -40℃ to +80℃ |
| Certification & Standards | |
| Certificate | Compliant with CE |
| Environmental Requirements | Compliant with RoHS |
| IP Rating | IP20 |

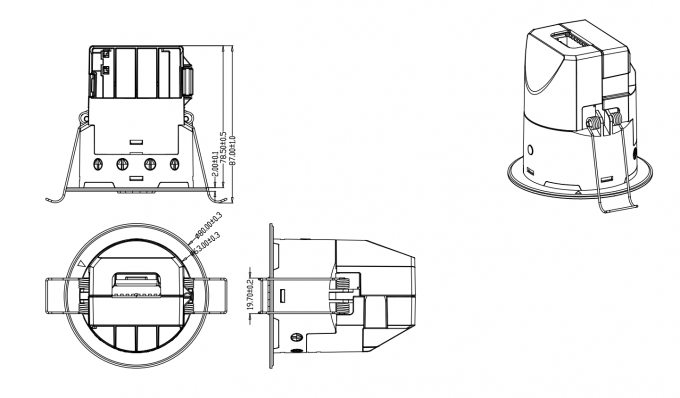

Dimensions & Function
Wiring Diagram
Important Wiring Notes:
- LN is the AC input terminal, and L'N is the AC output terminal. Please ensure the wiring sequence is correct.
- Single load requirements for a single sensor output: resistive loads should not exceed 1200W, and capacitive loads should not exceed 600W. When connecting multiple loads, surge capacity and total load must be considered. We recommend connecting an AC contactor or AC solid-state relay to the sensor output terminal to prevent damage to the sensor due to inrush current overload when one sensor is connected to multiple loads.
- The effective range of Bluetooth communication is 40m in open areas. If there are walls obstructing the view, the quality of Bluetooth communication may be affected.
Initialization & Default Settings
When powered on, the sensor will be in the initialization period, and the relay will be closed during this period. After initialization time, the relay is open, detection range, hold time, and daylight value can be set via the Casambi App.
Factory Default Settings
- Detection Area: 100%
- Hold Time: 2 seconds
- LED Indicator: ON
Detection Radiation Pattern
Casambi APP Settings
Application Precautions
- This infrared pyroelectric sensor should be installed by a professional electrician. Power should be disconnected before installation and wiring.
- The optimal installation height for this infrared pyroelectric sensor is 3m. It should not be installed outdoors to avoid false triggering due to ambient temperature. It should not be installed in locations sensitive to temperature or airflow changes to prevent false triggering or overheating, leading to sensor failure.
- The detection range of this infrared pyroelectric sensor should not be obstructed by screens, furniture, large potted plants, or other barriers.
- There should be no reflective objects directly in front of this infrared pyroelectric sensor, as reflected light can cause false triggering.
- This infrared pyroelectric sensor should be kept away from large electromagnetic radiation equipment, such as Wi-Fi routers, cameras, microwave ovens, etc. It is recommended to keep them at least 2 meters away to prevent electromagnetic interference.
- The sensing distance of this infrared pyroelectric sensor may fluctuate depending on the installation height and ambient temperature compared to the typical value.
