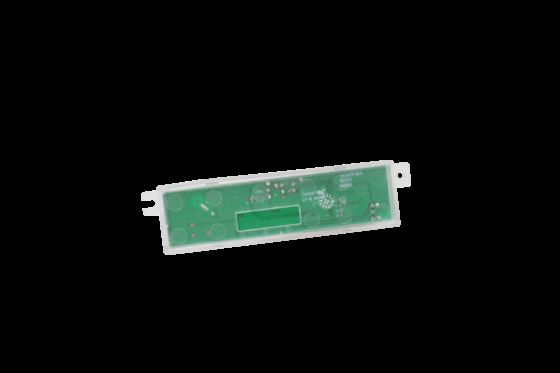

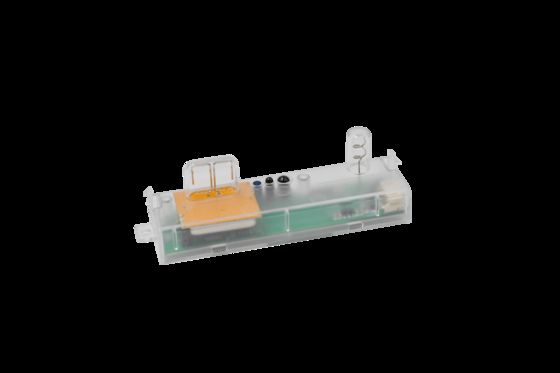

12Vdc Casambi Network Microwave Motion Sensor For Slim LED Fixtures, 6m max Mounting Height
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 정격 전압 | 12 ± 1VDC | 잔물결 전압 | < 100mVp-p |
|---|---|---|---|
| 출력 신호 | 0-10V 디밍 신호/PWM 디밍 신호 | 장착 높이 | 3m (최대 6m) |
| 작동 온도 | 내장 : -35 ~ 60 ℃ | 자격증 | CE |
| 일생 | 5 년 보증@ta | ||
| 강조하다 | 12Vdc Casambi motion sensor,microwave motion sensor for LED fixtures,wireless motion sensor with 6m range |
||
제품 설명
12Vdc Casambi Network Microwave Motion Sensor For Slim LED Fixtures, 6m max Mounting Height
Product Features
- 12Vdc Input, suitable for DC systems or LED driver with 12V DC 100mA auxiliary power output.
- 0-10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
- Mini size MW motion detection sensor
- Indoor maximum mounting height is 6m
- All sensor parameters can be set by Casambi App setting
Parameters
| Input | |
|---|---|
| Rated voltage | 12±1VDC | 7.5-13VDC |
| Working current | 32±5mA | 32±5mA |
| Ripple voltage | < 100mVp-p |
| Output | |
| Output signal | 0-10V Dimming Signal | PWM Dimming Signal |
| Sensing parameters | |
| Working frequency | 5.8GHz ±75MHz, ISM band |
| Transmit power | 1mW Max. |
| Sensor sensitivity | Casambi App setting |
| Daylight Priority | Casambi App setting |
| Stand-by dim level | Casambi App setting |
| Detection range (radius) | Ceiling Mounting(height: 3m): 0.3m/s ≥3m, 1m/s ≥2.5m Wall Mounting(height: 2m): 0.3m/s ≥5m, 1m/s ≥3m Test conditions: the product is set to 100% sensitivity, and there is no obvious occlusion in the room of 60㎡ |
| Installation height | 3m (6m Max) |
| Wireless Module | |
| BLE Module | Casambi Bluetooth |
| Working frequency | 2.402-2.480GHz |
| Transmitting power | +7dBm(max) |
| Transmission distance | 25m(Visible distance) |
| Environment | |
| Working temperature | Built-in: -35~60℃ |
| Storage temperature | -40℃~80℃, humidity ≤85% (non-condensing) |
| Certification Standards | |
| Certified | CE |
| Environmental requirements | Comply with RoHS 2.0, Reach requirements |
| Degree of protection | IP20 |
| Other | |
| Wiring | 3pin 2.0mm terminal |
| Installation requirements | built-in installation |
| Packaging requirements | Clapboard + paper carton(K=A) |
| Net weight | 25.5±3g |
| Life | 5 Years Warranty@Ta |
Function description
| ON-OFF function | Casambi App setting |
| 2-step dimming | Casambi App setting |
| 3-step dimming | Casambi App setting |
| Daylight harvesting | Casambi App setting |
| Daylight priority | Casambi App setting |
| Grouping | Casambi App setting |
Diagram
Dimension
Screw installation
Clasp structure installation
Wiring, Function
Installation
Radiation Diagram
Initialization
When powering on for the first time, the sensor will turn the light on to 100% brightness, and the light will be turned off after 10 seconds. During initialization, movement signal will not be detected.
Default setting
Detection area: 100%; Hold Time: 5s; Stand-by Period: 0s; Daylight Sensor: Disable; Stand-by Dim Level: 10%.
Application Notice
- The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring etc.
- The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, which is 165cm/65kg tester, and it is tested in an open indoor environment
- When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling. If you use the wall installation method, please reduce the sensitivity to use or contact our company to confirm the use settings. The light sensitivity threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different time periods, climates, and environments, the illuminance value detected by the light sensor may be different
- Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
- This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering
- The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters
- When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
- Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
- Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product
- Sensor with different 0-10V / PWM driver, LOW light effect may be different
- DC regulated power supply with stable output voltage and LOW ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 100 mA
- Product specifications and parameters may be optimized without prior notice
- For the new installation environment, it is recommended to test 5pcs samples before installation.
