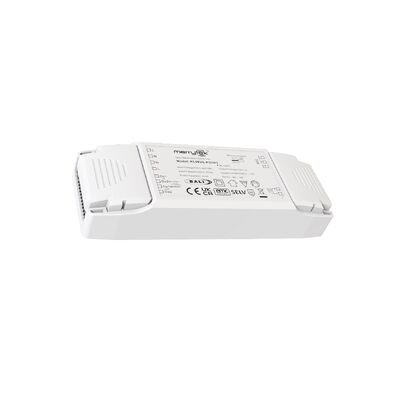

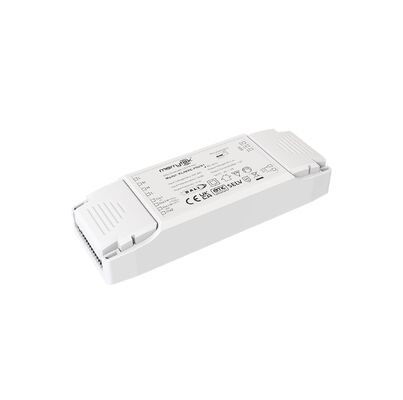

40W 24 Volt Dimmable LED Driver DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
High-performance 40W LED driver with multiple dimming options and robust protection features.
Key Features
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- Secondary dimming with a 0-10V dimmer and a potentiometer
- Built-in DALI interface DT8
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Series | Name | KL40VC-PDiiV1 |
|---|---|---|
| Input | ||
| Voltage range | 198~264Vac 50Hz /60Hz | |
| Rated supply voltage | 220~240Vac 50Hz /60Hz | |
| DC voltage range | 200~240Vdc | |
| Input current | 0.21A Max.@230Vac | |
| Inrush Current | 15A (Half current pulse width 100US) @230VAC | |
| Power factor | ＞ 0.95 (@230Vac,100% load) | |
| Total harmonic distortion | Typical: 16% (@230Vac, 100% load) | |
| Stand-by power | ≤0.5W | |
| Efficiency(@230Vac,100% load) | 89%Max | |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm2 | |
| Loop-in&Loop-out quantity | 30PCS(@230Vac) | |
| Output | ||
| Operating mode | Constant voltage | |
| Load type | LED | |
| Flickering / Flickering-Free | Flickering-Free | |
| Start-up time | <1s (@230Vac) | |
| Load output voltage range | 24V CV | |
| Load output current | 1.67A Max. | |
| Full load output power | 40W Max. | |
| Minimum load | 3W | |
| Output current/voltage tolerance | ±5% | |
| Wiring method | Push terminal, wire cross section:2*0.5-2.0mm2 | |
| Control Method | ||
| Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length:20m) | |
| 1-10V(0-10V)Dimming | 0-10V dimming(Port current＜1mA), (Max. lead wire length:20m) | |
| Dimming Range | 0%-100% | |
| Secondary PWM dimming | 0-10V port PWM dimming (3KHz-8KHz) | |
| Potentiometer | Yes, 100kΩ | |
| DALI function | DALI dimming (Max. lead wire length:300m) | |
| Exception Protection Requirements | ||
| Output over temperature protection | Yes, reset the power to recover | |
| Output short circuit protection | Yes, reset power to recover | |
| Operating Environment | ||
| Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | |
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%-95% | |
| Max. case temp(Tc) | 85℃ | |
| Safety & EMC | ||
| EMC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |
| DALI standard | IEC62386-101 / 102 / 207 DT6 / 209 DT8 | |
| Safety standard | EN61347-1, EN61347-2-13 | |
| Certification | CE | |
| Withstand voltage | 3750Vac, 5mA, 60s (Input "L N"- Output "SEC") | |
| Others | ||
| IP Rating | IP20 | |
| Type of protection | Class II | |
| Installation type | Independent installation | |
| Installation dimension | 150*52*28mm | |
| Memory function | Yes, (PUSH with memory function) | |
| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. | |
| Packaging requirements | Instruction+clapboard+outer carton(K=A) | |
| Weight | 300g | |
| Life | 5 years @Ta 100% load | |
Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified.
Dimensions
Wiring Diagrams
DALI Dimming
Push Dimming
Derating
Dimming Curve
Operation Instructions
- A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
- B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.
- C. Color temperature adj: Step 1, PUSH turns off the lights; Step 2, press and hold PUSH to adjust the color temperature starting from the current brightness; Release PUSH, press and hold PUSH again, and adjust the color temperature in the opposite direction; No operation for 5 seconds, exit color adjustment mode.
- D. Memory: PUSH dimming has a dimming memory function.
- E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
- F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
- G. Constant voltage dimming drivers cannot be used in lamps with constant current circuits.
Note: All parameters are tested at an input voltage of 230VAC and a temperature of 25°C, unless otherwise specified.
