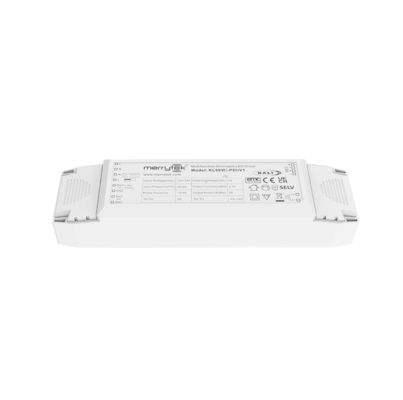

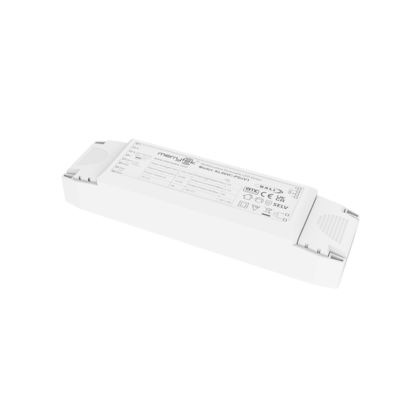

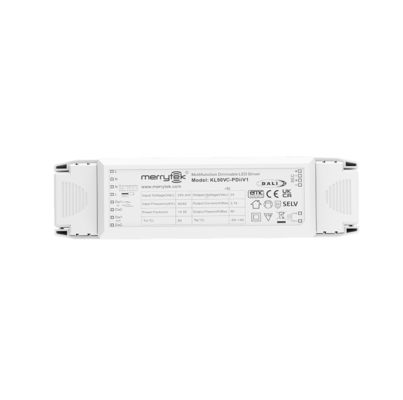

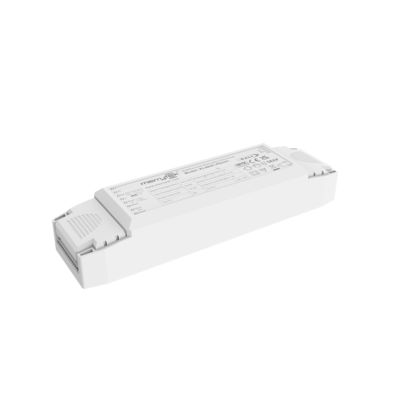

90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 정격 입력 전압 | 220-240Vac 50Hz /60Hz | 직류 입력 전압 범위 | 200-240Vdc |
|---|---|---|---|
| 작동 모드 | 정전류 | 제어방식 | LED 스트립 조명용 정전압 12V DALI DT8 디밍 가능 드라이버 |
| 전력 계수 | ≥0.99 | 능률 | 91% |
| 일정한 전압 | 12VDC | 차원 | 202x58x30mm |
| IP 등급 | IP20 | 보증 | 5년 |
| 강조하다 | 90W DALI DT8 dimmable LED driver,12V constant voltage LED strip driver,DALI2.0 dimmable power supply |
||
제품 설명
90W Constant Voltage 12V DALI DT8 Dimmable Driver for LED Strip Lights
Product Description
High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- Secondary dimming with 0-10V dimmer and potentiometer
- Built-in DALI interface DT8
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Series | KL90VC-PDiiV |
|---|---|
| Input | |
| Voltage range | 198~264Vac 50Hz /60Hz |
| Rated supply voltage | 220~240Vac 50Hz /60Hz |
| DC voltage range | 200~240Vdc |
| Input current (@230Vac) | 0.46A Max |
| Inrush Current | 30A (Half current pulse width 100US) @230VAC |
| Power factor | ≥ 0.99 (@230Vac,100% load) |
| Total harmonic distortion | Typical: 6% (@230Vac, 100% load) |
| Stand-by power | ≤0.3W |
| Efficiency(230Vac,100% load) | 91%Max |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² |
| Output | |
| Operating mode | Constant voltage |
| Load type | LED |
| Flickering / Flickering-Free | Flickering-Free |
| Start-up time | <1s (@230Vac) |
| Forward voltage | 12V |
| Output current | 7.5A |
| Max. output voltage (no-load) | 20V |
| Full load output power | 90W Max. |
| Minimum load | 9W |
| Output current/voltage tolerance | ±5% |
| Wiring method | Screw terminal, wire cross section:2*0.5-2.5mm² |
Dimensions
Wiring Diagrams
DALI Dimming
Push Dimming
Operation Instructions
- ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
- Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
- Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
- Memory function: Remembers last dimming setting
- DALI dimming: Connect to DALI system for 0-100% dimming
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
