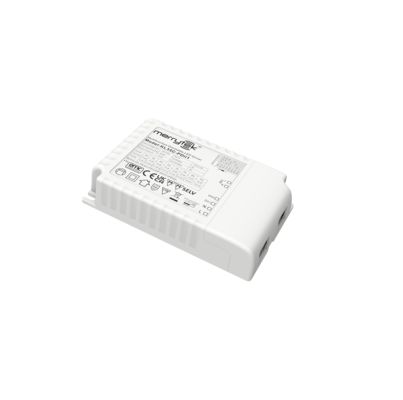

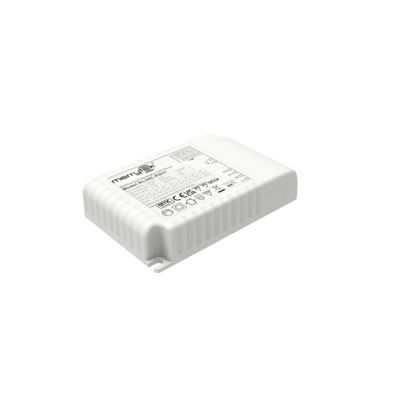

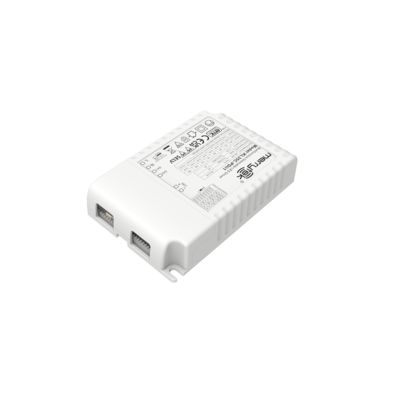

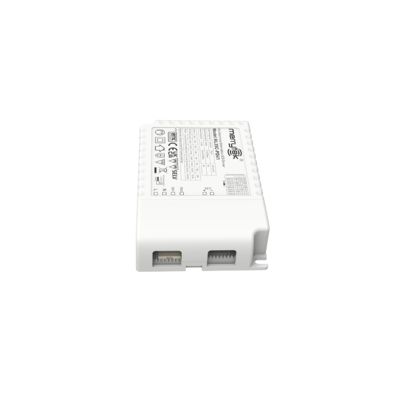

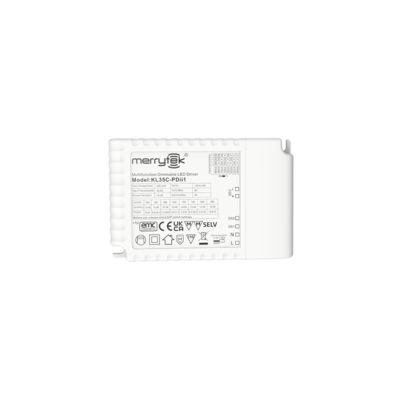

35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 승인 | CE, REACH, ROHS | 정격전압 | 220-240V AC 50Hz /60Hz |
|---|---|---|---|
| 제품명 | DALI 2.0 디밍 가능 LED 전류 드라이버 | 완전 부하 출력 전력 | 35W 최대 |
| 부하 출력 전압 | 12-48V | 디밍 모드 | 달리, 푸시 |
| 작동 온도 | -25C-50C | 출력 전류 | 500/550/600/650/700/750/800/900mA |
제품 설명
35W CC 500mA to 900mA DALI2 dimmable slim LED current driver with 5-year warranty
Product Description
- Built-in DALI2 protocol, no flicker in full dimming range
- Primary Push dimming function with state memory
- Short circuit / over temperature / over voltage protection
- Standby power consumption ≤ 0.5W
- 5-year warranty
Specifications
| Input | Operating Voltage | 198-264VAC 50Hz/60Hz | ||||||
| Rated Input Voltage | 220-240VAC 50Hz/60Hz | |||||||
| DC Input Voltage range | 200-240VDC | |||||||
| Input Cuttent | 0.2A Max. | |||||||
| Input Inrush Current | <10A (Half current pulse width 100US) @230VAC | |||||||
| Power Factor | ≥ 0.95 (@230Vac,100% load) | |||||||
| Total harmonic distortion | Typical: 15% (@230Vac, 100% load) | |||||||
| Stand-by Power | ≤0.5W (@230Vac when PUSH or DALI turns off) | |||||||
| Efficiency | 87%Max (@230Vac,100% load) | |||||||
| Wiring Method | Push terminal, wire cross section:0.75-1.5mm2 | |||||||
|
Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 25 | 30 | 40 | 50 | 60 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 40 | 55 | 60 | 80 | 105 | 130 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Flickering / Flickering-Free | Flicker value: less than 2% for the whole dimming range | |||||||
| Start-up time | <1s (@230Vac) | |||||||
| No-load output voltage | 65VDC Max. | |||||||
| Load output voltage range | 12-48VDC | |||||||
| Full load output power | 35W Max. | |||||||
| Load output current | 500~900mA : For details<Current gear setting> | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Push terminal, wire cross section:0.75-1.5mm2 | |||||||
| Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length:20M) | ||||||
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% 1-10V dimming:2%-100% |
|||||||
| DALI Dimming | DALI dimming (Max.lead length:300M) | |||||||
| Exception Protection Requirements | Output over temperature protection |
Yes, without a self-recovery function(Can be inquired) | ||||||
| Output short circuit protection | Yes, without a self-recovery function(Can be inquired) | |||||||
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | ||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||
| Max. case temp(Tc) | 85℃ | |||||||
|
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||
| DALI protocol standard | IEC62386-102 IEC62386-207 DT6 | |||||||
| Safety standard | EN61347-1, EN61347-2-13, EN62493, EN60598-1 | |||||||
| Certification | CE | |||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||
| Others | Degrees of protection | IP20 | ||||||
| Type of protection | Class II | |||||||
| Installation type | Independent installation | |||||||
| Installation dimension | 123*79*24mm | |||||||
| Blackout memory function | Yes, PUSH blackout memory | |||||||
| PUSH dimming synchronization |
Parallel: 15 units Max. Series: 25 units Max. |
|||||||
| Packaging requirement | white box+ Instructions Clapboard Outer Carton(K=A) | |||||||
| Weight | 132g | |||||||
| Life | 5 years guarantee @Ta full load | |||||||
| Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified. | ||||||||
Dimension:
Wiring Diagram
1) PUSH Dimming wiring diagram
2) DALI wiring diagram
Current Gear Setting
| Current(mA) | DIP | Pomax(W) | Uout(V) | |||
| 1 | 2 | 3 | ||||
| 500 | - | - | - | 24 | 12～ | 48 |
| 550 | ON | - | - | 26.4 | 12～ | 48 |
| 600 | - | ON | - | 28.8 | 12～ | 48 |
| 650 | - | - | ON | 31.2 | 12～ | 48 |
| 700 | ON | ON | - | 33.6 | 12～ | 48 |
| 750 | ON | - | ON | 34.5 | 12～ | 46 |
| 800 | - | ON | ON | 35 | 12～ | 44 |
| 900 | ON | ON | ON | 35 | 12～ | 39 |
ON/OFF & Description of Dimming Operation
A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.
C. Memory: PUSH dimming has a dimming memory function.
D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.
E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
Important Notes
-
1) The LED string must be connected to the load before turning on the input power; otherwise, the LED string may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
