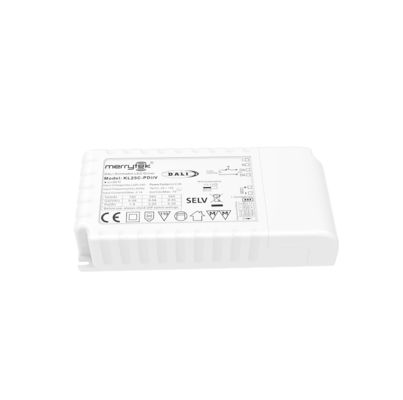

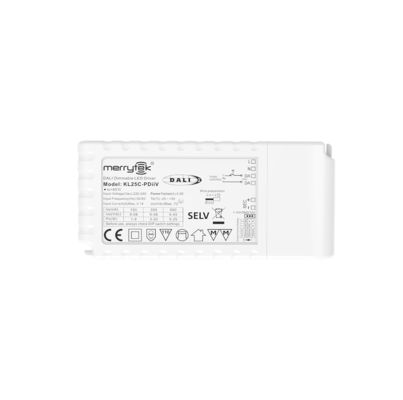

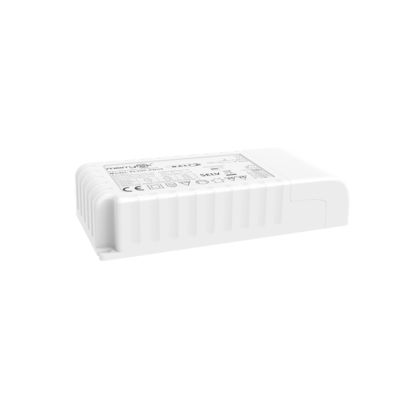

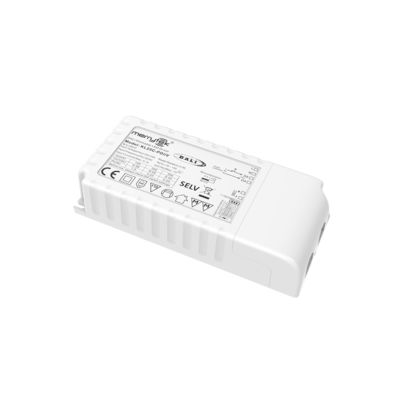

25W CC 150mA to 550mA DALI2 dimmable slim LED driver with 5 years warranty
Product Description
- Built-in DALI2 protocol, no flicker in full dimming range
- Primary Push dimming function with state memory
- Short circuit / over temperature / over voltage protection
- Standby power consumption ≤ 0.5W
- 5 years warranty
Specifications
Input
| Voltage range | 198~264Vac 50Hz/60Hz |
| Rated supply voltage | 220~240Vac 50Hz/60Hz |
| DC voltage range | 200~240Vdc |
| Input current | 0.14A Max.@230Vac |
| Inrush Current | 8A (Half current pulse width 50us) @230VAC |
| Power factor | ≥0.95 (@230Vac, 500mA/45Vdc, 100% load) |
| Total harmonic distortion | Typical: 20% (@230Vac, 100% load) |
| Stand-by power | ≤0.5W |
| Efficiency(@230Vac,100% load) | 86%Max |
| Wiring method | Push terminal, wire cross section:0.75-1.0mm² |
| Loop-in & Loop-out quantity | 30PCS(@230Vac) |
Output
| Operating mode | Constant current |
| Load type | LED |
| Flickering / Flickering-Free | Flickering-Free |
| Start up time | <1s (@230Vac) |
| Load output voltage range | 9-58Vdc |
| Load output current | 150mA(9-58Vdc), 350mA(9-58Vdc), 550mA(9-45Vdc) |
| Full load output power | 25W Max. |
| No load output voltage | 72Vdc Max. |
| Output current/voltage tolerance | ±5% |
| Wiring method | Push terminal, wire cross section:0.75-1.0mm² |
Control Method
| Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length:20m) |
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% 1-10V dimming:2%-100% |
| DALI function | DALI dimming (Max. lead wire length:300m) |
| 1-10V Dimming | 1-10V |
| Output auxiliary power port | 12Vdc, 0.1A Max. |
| Sensor Dimming port | 1-10V |
Exception Protection Requirements
| Output over temperature protection | Yes, reset power on to recover |
| Output short circuit protection | Yes, reset power on to recover |
Operating Environment
| Operating temperature/humidity | -25℃~50℃ Humidity:85% (Non-condensing) |
| Storage temperature/humidity | -40℃~80℃, Humidity:10%-85% (Non-condensing) |
| Max. case temp(Tc) | 85℃ |
Safety & EMC
| EMC standard | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| DALI standard | IEC62386-102, IEC62386-207 |
| Safety standard | EN61347-1, EN61347-2-13 |
| Certification | CE |
Others
| Degrees of protection | IP20 |
| Type of protection | Class I |
| Installation type | Independent installation |
| Installation dimension | 110*50*23.5mm |
| Memory function | Yes, (PUSH with memory function) |
| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. |
| Weight | 140±5g |
| Life | 5 years @Ta 100% load |
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.
Dimension (Unit:mm)
Wiring Diagram
1) PUSH Dimming wiring diagram
2) DALI wiring diagram
3) 0-10V dimming wiring diagram
Current Gear Setting
| Current gear setting | 1 | 2 |
|---|---|---|
| 550mA (9-45Vdc) | ● | ● |
| 350mA (9-48Vdc) | ● | ○ |
| 150mA (9-48Vdc) | ○ | ○ |
ON/OFF & Description of Dimming Operation
- A. Short press the PUSH switch (0.1s-1s) to turn on/off
- B. Press and hold (1s-8s) for dimming (2-100% range)
- C. PUSH dimming has memory function
- D. Dimming synchronization: hold PUSH switch >15s
- E. DALI dimming mode: 0-100% range via DALI host
Important Notes
- Connect load before powering on to prevent damage
- Output maintains residual voltage (~3 minutes) after power off
