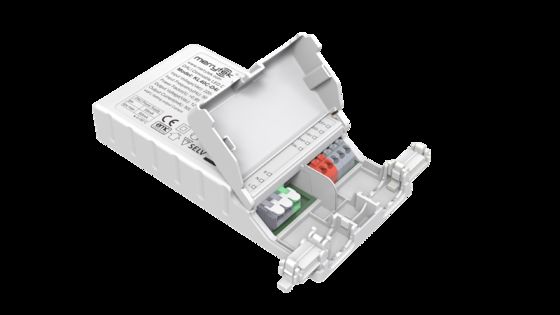

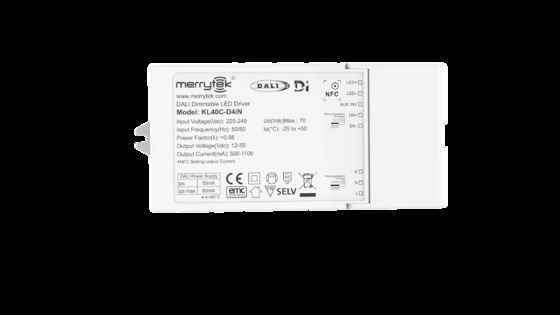

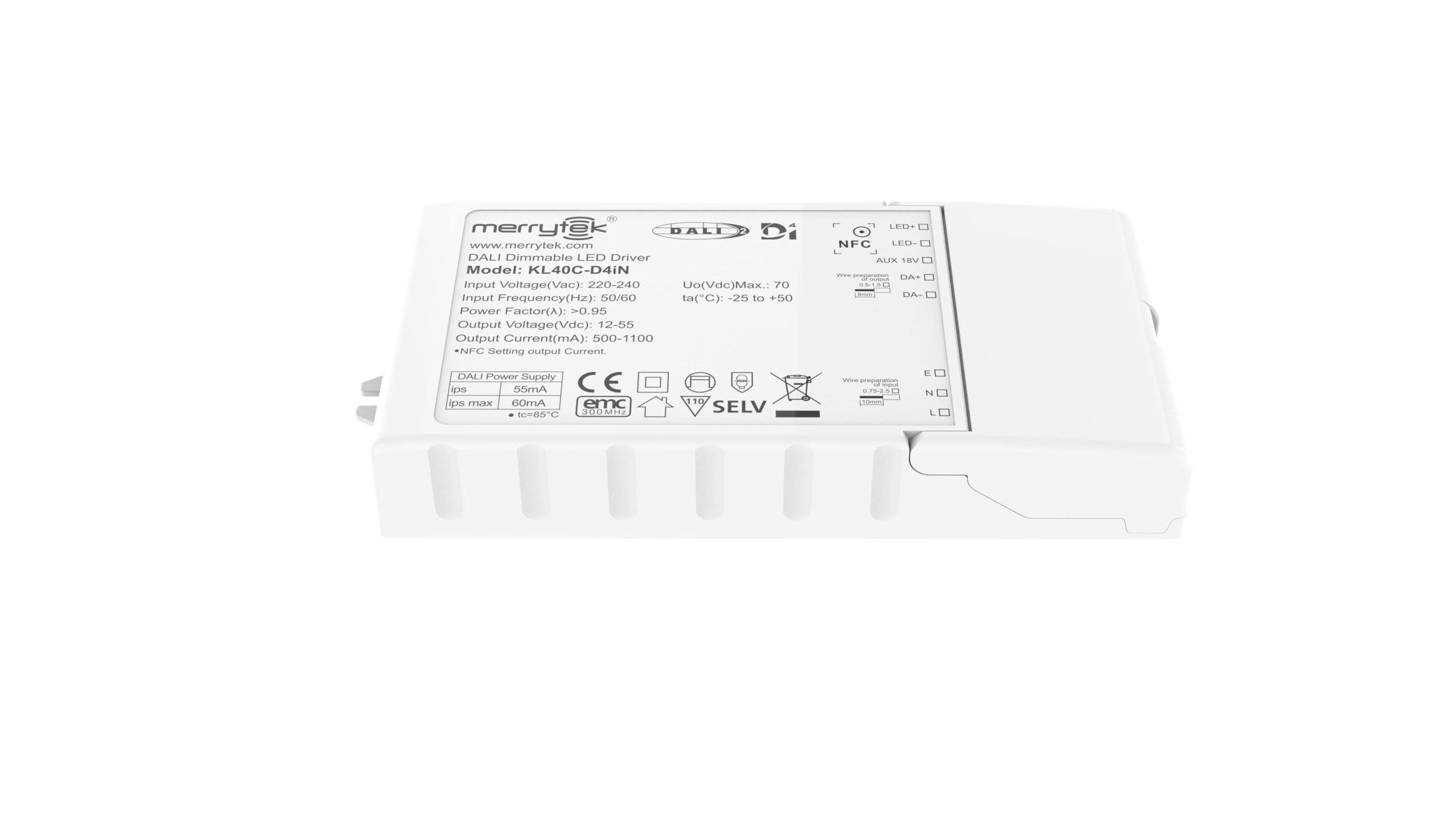

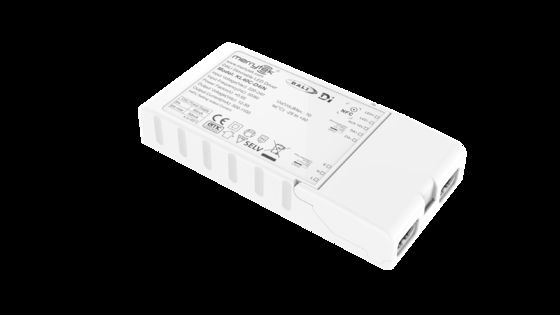

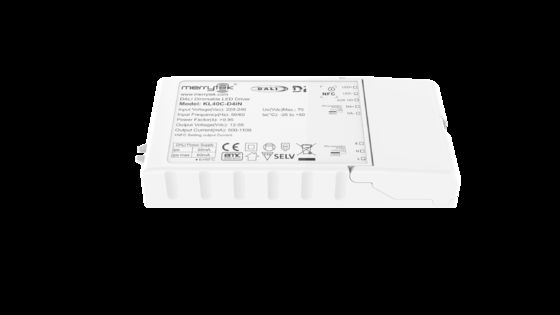

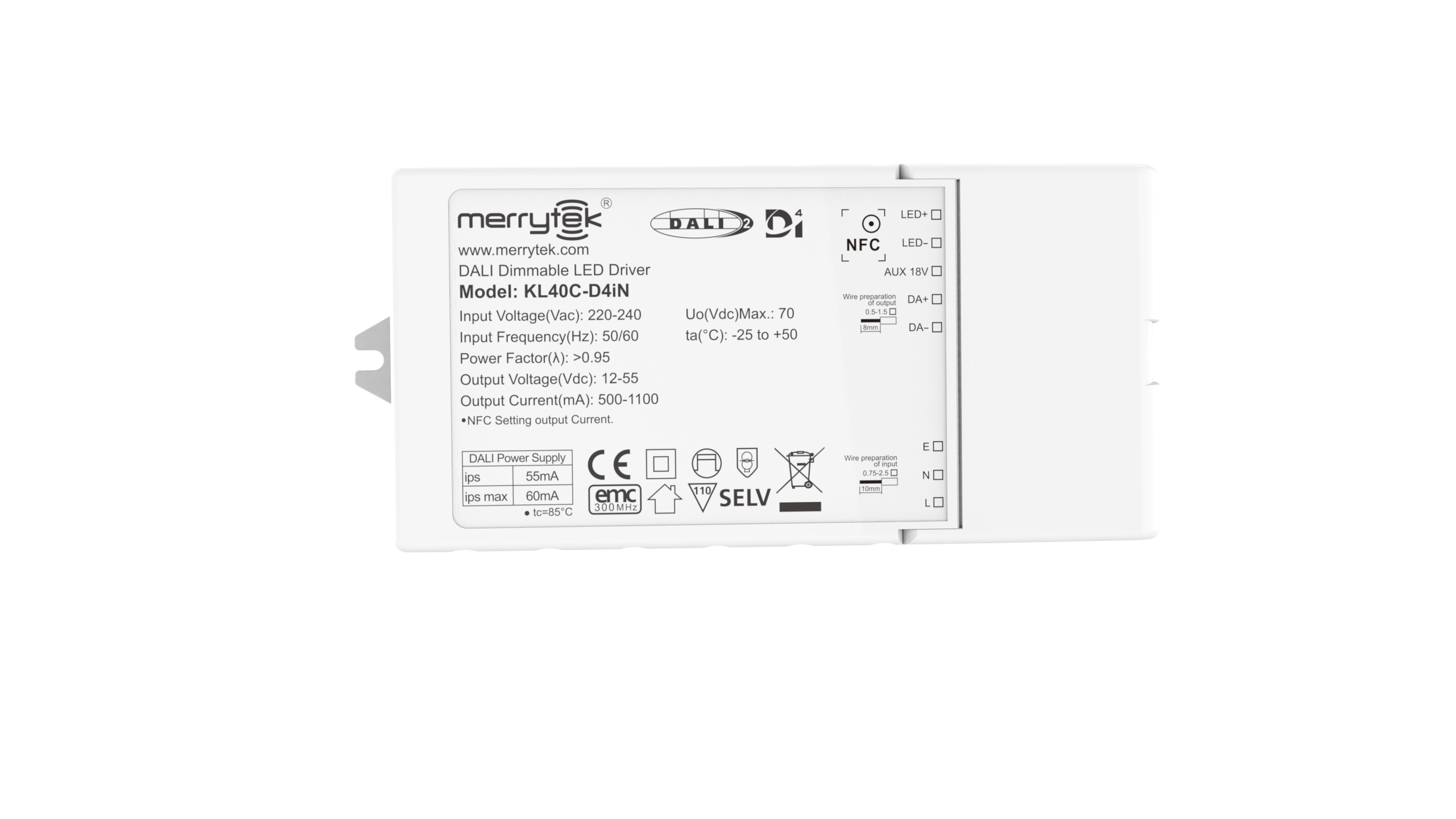

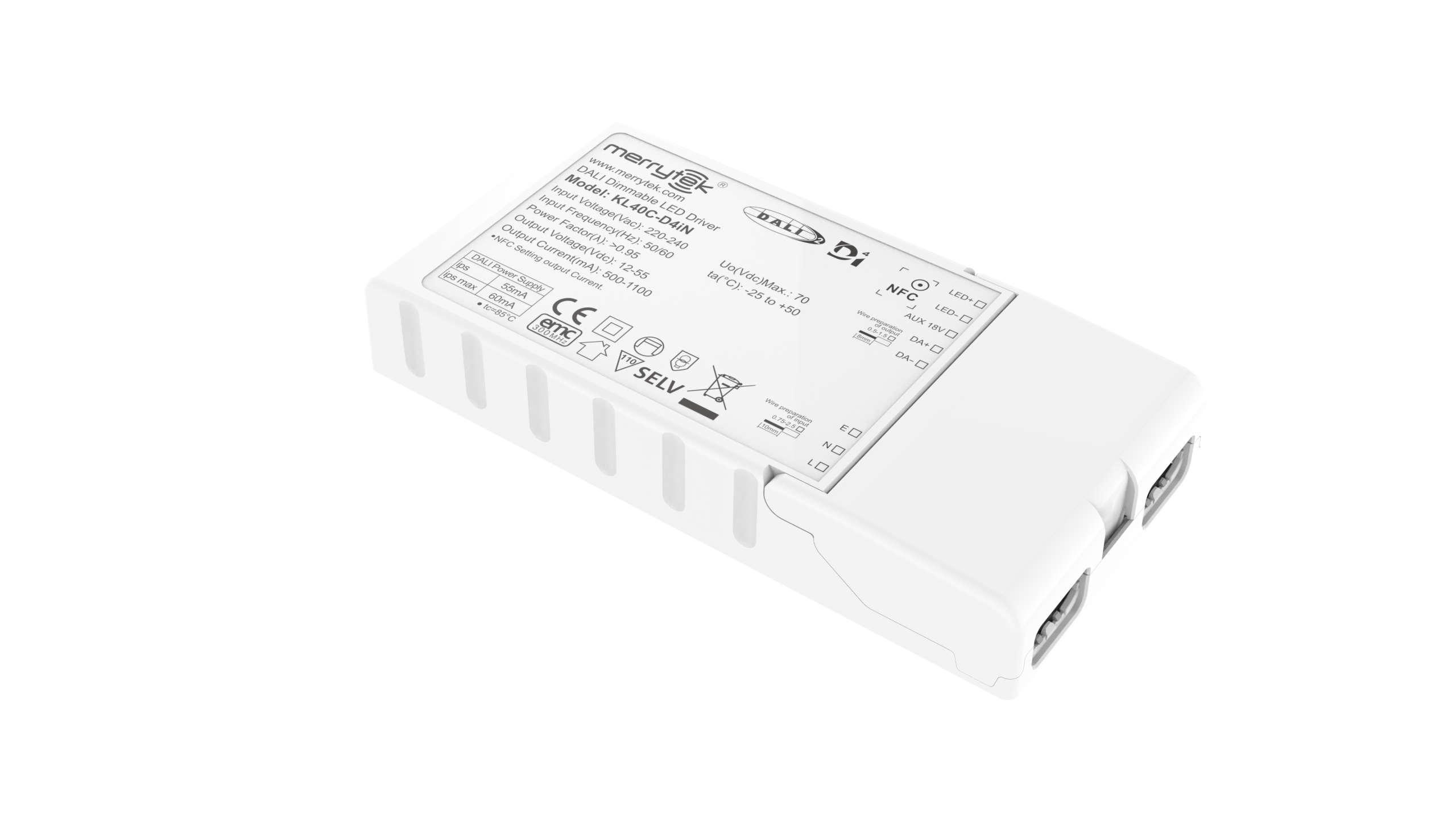

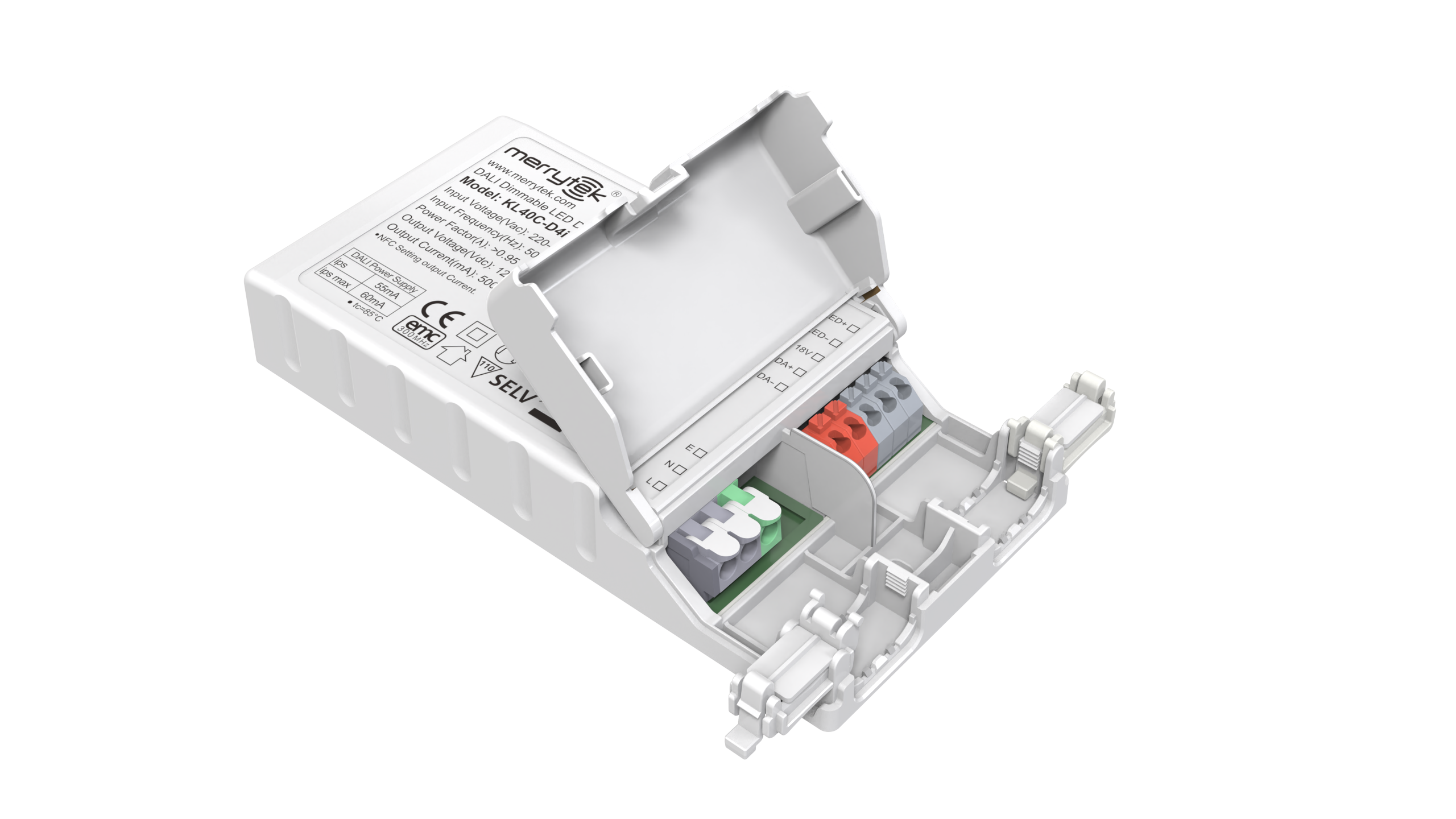

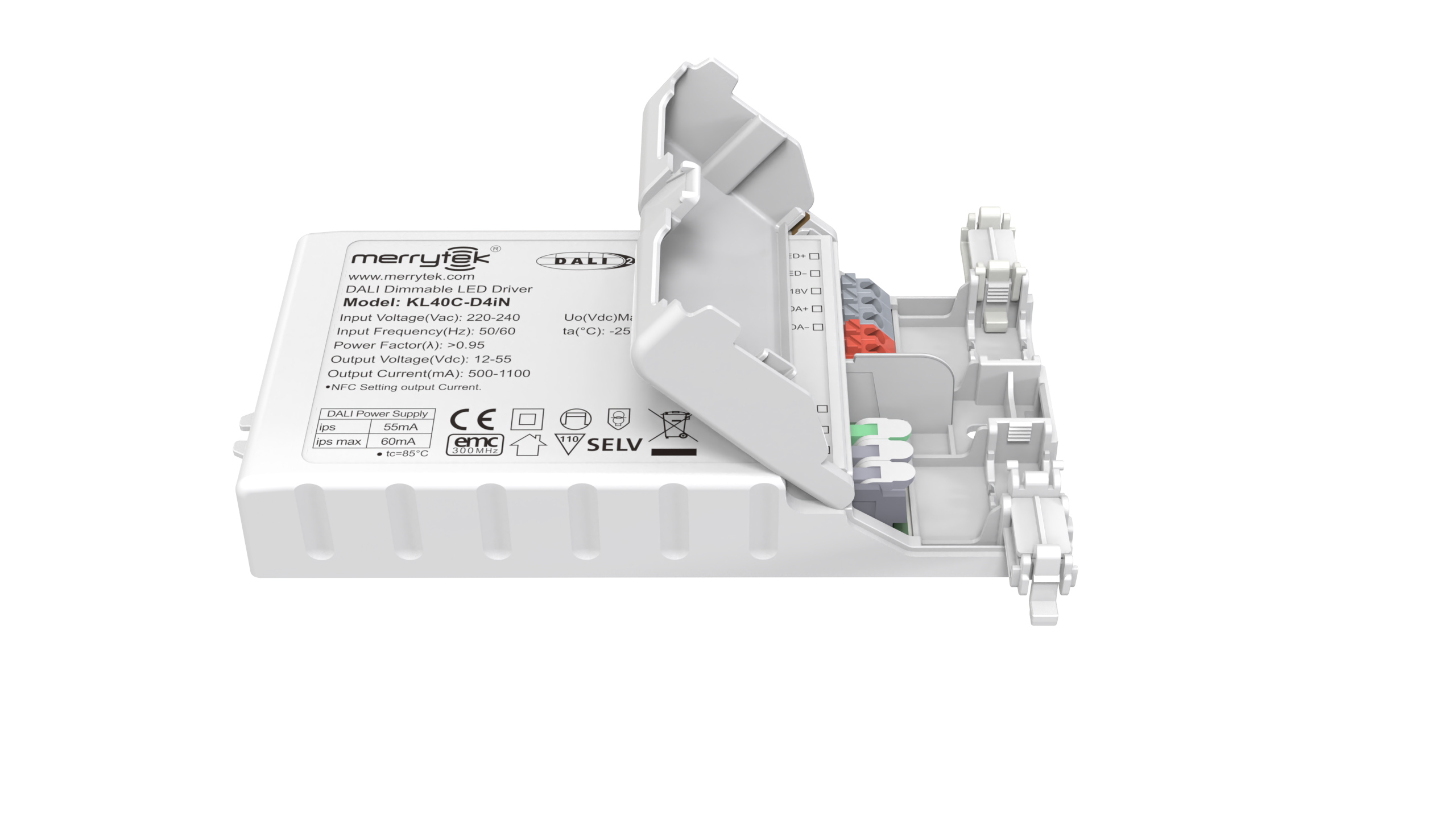

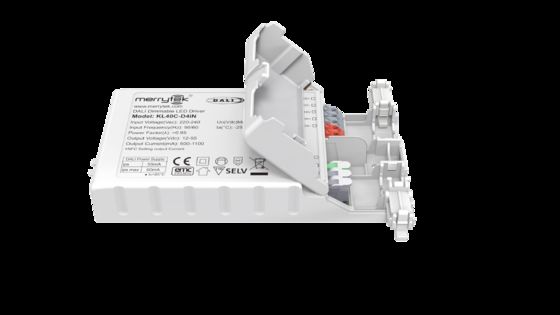

45W 500mA to 1100mA D4i dimmable led controller with 5-year warranty period
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 정격 입력 전압 | 220-240Vac 50Hz /60Hz | 직류 입력 전압 범위 | 200-240Vdc |
|---|---|---|---|
| 작동 모드 | 45W Dimmable LED 컨트롤러 | 제어 방법 | D4I 드라이버 |
| 전력 계수 | ≥0.95 | 능률 | 89% |
| 현재의 | 500-1100ma | 차원 | 160x79x26mm |
| IP 등급 | IP20 | 보증 | 5 년 |
| 강조하다 | 45W D4i dimmable LED controller,DALI2.0 dimmable LED driver,1100mA LED controller with warranty |
||
제품 설명
45W 500mA to 1100mA D4i dimmable LED controller with 5-year warranty period
1. Description
-Flicker-free for the whole dimming range
-NFC technology for wireless programming
-Stand-by power below 0.5W
-Built-in DALI interface D4i
-Centrally-supplied DC emergency operation DT19
-Protection: short circuit / over temperature/ over voltage
-CLO compensation
-Derating the current for high ambient temperature
-Quick-wiring, Convenient, and time-saving
-5-year warranty
2. Parameters
| Input | Operating Voltage | 198-264Vac 50Hz/60Hz | ||||||
| Rated Input Voltage | 220-240Vac 50Hz/60Hz | |||||||
| DC Input Voltage range | 200-240Vdc | |||||||
| Input Current | 0.27A Max. | |||||||
| Input Inrush Current | <15A (Half current pulse width100μs) @230Vac | |||||||
| Power factor(@230V100% load) | ≥0.95 | |||||||
| Total harmonic distortion | Typical: 15% (@230Vac, 100% load) | |||||||
| Stand-by power | ≤0.5W (@230Vac when DALI turns off) | |||||||
| Efficiency(@230Vac,100% load) | 89% Max. | |||||||
| Wiring Method | Wire cross section: 0.75-2.5mm2 | |||||||
|
Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 20 | 25 | 30 | 40 | 50 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 30 | 43 | 50 | 60 | 80 | 100 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Ripple requirement (Flickering or Flickering-Free) | Flicker value: less than 5% for the whole dimming range | |||||||
| Start-up time | <1s (@230Vac) | |||||||
| No-load output voltage | 68V DC Max. | |||||||
| Load output voltage range | 12-55V DC | |||||||
| Full load output power | 45W Max. | |||||||
| Load output current | 500-1100mA | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Wire cross section: 0.5-1.5mm2 | |||||||
| Control Method | Output auxiliary power port | 18Vdc, 100mA |
| DALI Dimming | DALI dimming (Max. lead length:300m) | |
| DALI Power Supply | lps 55mA (60mA Max.) | |
| DALI Power Supply Load | 15 units Max. | |
| Dimming range | DALI dimming: 0%-100% | |
| Exception Protection Requirements | Output over temperature protection |
Yes, without a self-recovery function(Can be inquired) |
| Output short circuit protection | Yes, without a self-recovery function(Can be inquired) | |
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity: 85% (Non-condensing) |
| Storage temperature/ humidity | -40℃~80℃, Humidity: 85% (Non-condensing) | |
| Max. case temp(Tc) | 85℃ | |
|
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 |
| DALI protocol standard | IEC62386-101 / 102 / 207 DT6 / 220 DT19 / 250 / 251 / 252 / 253 | |
| Safety standard | EN61347-1 EN61347-2-13 | |
| Certification | CE | |
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |
| Others | Degrees of protection | IP20 |
| Type of protection | Class I | |
| Installation type | Independent installation or Built-in installation | |
| Dimension (Independent installation) | 160*79*26mm | |
| Dimension (Built-in installation) | 130*79*26mm | |
| Packaging requirement | PE bag + white box + manual + partition + outer box (K=A) | |
| Weight | 168±5g | |
| Life | 5 year @Ta full load | |
| Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified. | ||
3. Dimension (Unit: mm)
Fig A Standalone Design Fig B Built-in Design
4. Wiring Diagram
5. Derating
6. Dimming curve
7. Current gear setting
| KL45C-D4iN | |||
| Current(mA) | Pomax(W) | Uout(V) | |
| 500 | 27.5 | 12～ | 55 |
| 550 | 30.2 | 12～ | 55 |
| 600 | 33.0 | 12～ | 55 |
| 650 | 35.7 | 12～ | 55 |
| 700 | 38.5 | 12～ | 55 |
| 750 | 41.3 | 12～ | 55 |
| 800 | 44.0 | 12～ | 55 |
| 850 | 45.1 | 12～ | 53 |
| 900 | 45.0 | 12～ | 50 |
| 950 | 44.7 | 12～ | 47 |
| 1000 | 45.0 | 12～ | 45 |
| 1050 | 45.2 | 12～ | 43 |
| 1100 | 45.1 | 12～ | 41 |
The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.
8. ON/OFF & Description of Dimming Operation
DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
9. matters needing Attention
1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
3) Before setting the parameters by NFC, please make sure the driver is powered off.
