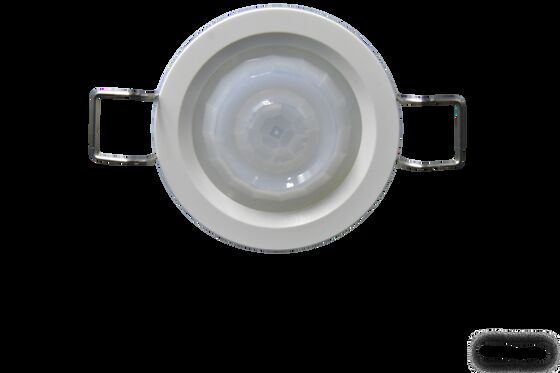

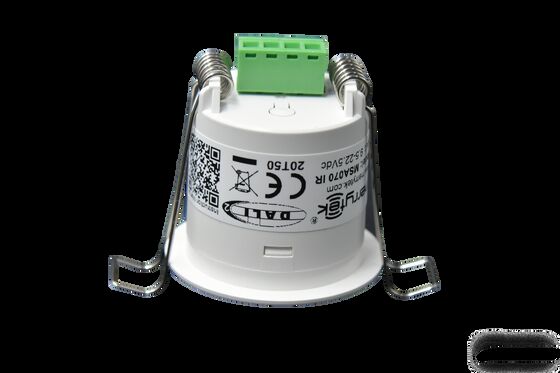

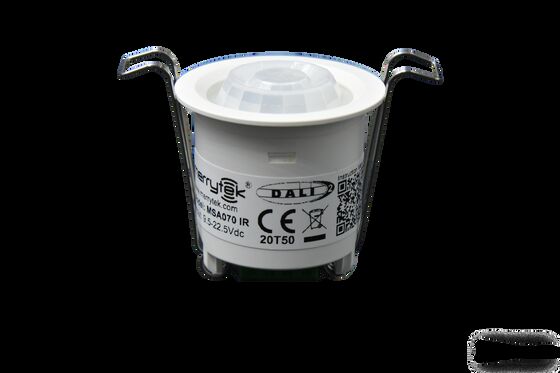

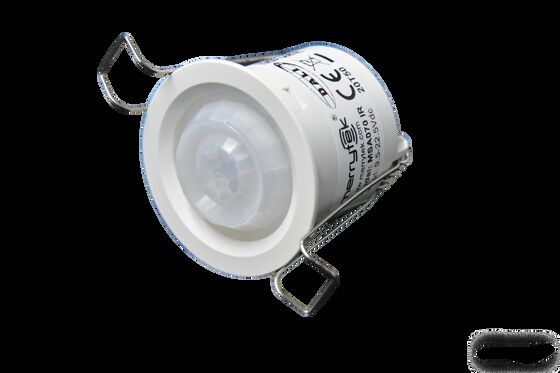

35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector

  • 35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector
  • 35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector
  • 35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector
  • 35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector
원래 장소 중국
브랜드 이름 Merrytek
인증 CE
모델 번호 MSA070 IR
최소 주문 수량 100개
가격 협상 가능
포장 세부 사항 하얀 box+ 화이트박스 tags+ Clapboard+ 통(K=A)
배달 시간 1, 샘플 및 작은 주문 : 지불을받은 후 5 일 이내에. 2, 벌크 주문 : 예금을받은 후 3-4 주.
지불 조건 티/티
공급 능력 10월 1000pcs

무료 샘플과 쿠폰을 받으려면 연락하세요.

왓츠앱:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
입력 전압 9.5-22.5Vdc 작동 전류 최대 7mA.
전력 소비 0.5W 이하 기능 DALI-2 PIR 모션 및 일광 센서
사용 가능 모션 감지, 일광 센서 장착 높이 2.5-4m
설치 매립형 컷 사이즈 φ35mm
강조하다

35mm DALI-2 PIR motion sensor

,

DALI daylight sensor with cut-out

,

PIR movement detector for lighting
메시지를 남겨주세요
제품 설명
35mm Cut-Out DALI-2 PIR Motion & Daylight Sensor
Professional PIR movement detector with DALI-2.0 compatibility for intelligent lighting control systems.
Key Features
  • Utilizes PIR infrared pyroelectric sensing technology
  • Flat lens design for aesthetically pleasing appearance
  • Accurately detects human movement and outputs DALI 2.0 signal
  • Powered by DALI bus and connects to DALI communication bus
  • Supports ambient light detection
  • Remote control setting of sensing range and delay time
  • Maximum motion detection range: 8-10 meters in diameter
  • Recommended for motion detection in corridors and passageways
  • Supports concealed, recessed installation
  • Ultra-small size; blends seamlessly with ceiling after installation
Technical Specifications
Input/Output Input Voltage DALI Bus Power
Related Voltage 9.5-22.5V DC DALI bus power
Working Current 7mA Max. (During DALI master device search process, instantaneous current reaches 20mA)
Working Power ≤0.5W
Output Signal DALI 2.0
Sensor Parameter Specification
Detection Method PIR + Daylight
Detection Sensitivity MH18 remote setting: 100% / 75% / 50% / 25%
Hold Time MH18 remote setting: 2s/30s/1min/3min/5min/10min/30min
DALI master: 2s(fixed)+1s -30min(DALI master setting)
DALI Protocol Compliant 101, 103, 303, 304
Daylight Sensor 0-1200Lux
Radius Detection Range 4-5m (Tangent detecting range, @25℃)
Remote Control Available
Mounting Height 2.5-4.0m (typical value: 3m)
Application Environment Specification
Drill Hole Φ35mm
Working Temperature -25℃...+50℃ (sensing distance varies with temperature)
Storage Temperature -40℃~+80℃
Wiring Preparation Diameter: 0.2-2.5mm², Stripping length: 7-8mm
Certificate & Standards Specification
Certificate Compliant with CE
Environmental Requirement Compliant with RoHS
IP Rating IP20
Warranty 3 years (limited to product defects only)
Note: "N/A" means not available.
Product Dimensions
35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector 0
Wiring Diagram
35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector 1
Detection Radiation Pattern
35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector 2
Detection Signal Information

The product detects human moving signals:

Moving signal: Detects significant human movement (walking) within the detection area.

Remote Control Options
35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector 3 35mm cut-out DALI-2 PIR motion & daylight sensor pir movement detector 4
Installation Guidelines
  • The sensor should be installed by a professional electrician. Disconnect power before installation and wiring.
  • Optimal installation height is 3m. Do not install outdoors to avoid false triggers from temperature changes.
  • Avoid installation in locations sensitive to temperature or airflow changes to prevent false triggers or sensor failure.
  • Ensure no screens, furniture, large potted plants, or other obstructions within the detection range.
  • Avoid reflective objects directly in front of the sensor to prevent false triggers from reflected light.
  • Keep sensor away from large electromagnetic radiation devices (Wi-Fi routers, cameras, microwave ovens). Maintain at least 2 meters distance.
  • Sensing distance may fluctuate depending on installation height and ambient temperature.
Product Disclaimer

Due to the complexity of product technology and differences in application environment, we cannot guarantee completely accurate or complete descriptions. This specification is for reference only.

We reserve the right to make changes to product specifications without notification and do not make any legal commitments or guarantees. We encourage users to supplement or modify specification contents after product use.

For more information, please contact our sales representative for additional details.
