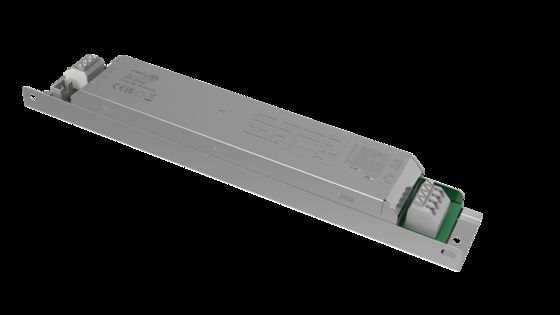

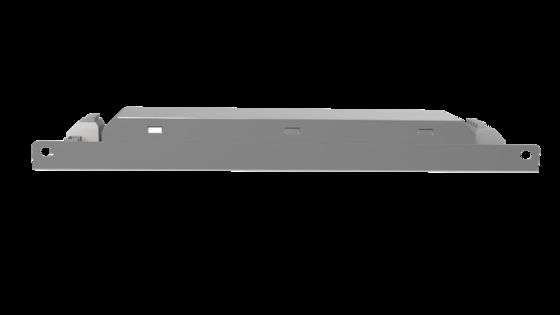

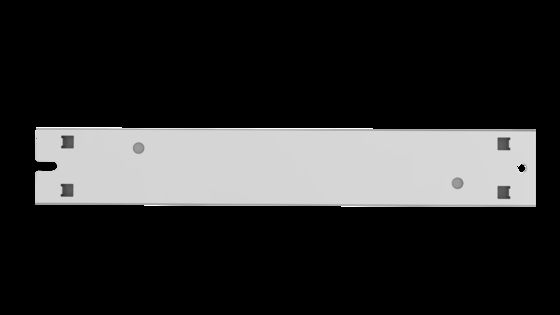

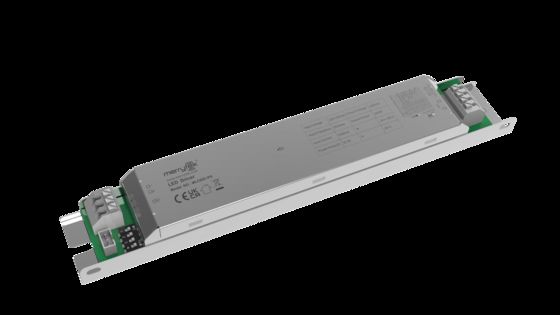

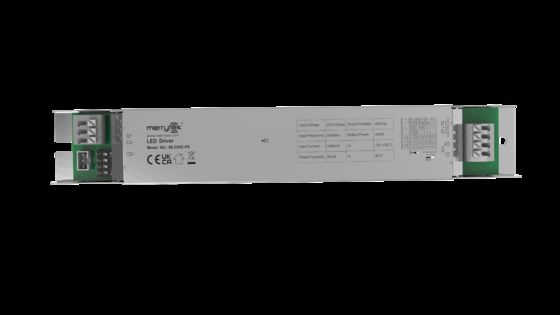

65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 전압 격렬 | 220-240Vac 50Hz/60Hz | 대기 전력 | 0.5W 이하(Merrytek 5.8Ghz 감지 분할 헤드 장착) |
|---|---|---|---|
| 전력 계수 | ≥0.95(230V 최대 부하) | 작업 모델 | 정전류 |
| 명멸 | ≤5% | IP 등급 | IP20 |
| 일생 | 5년 warranty@Ta 230V 전부하 | ||
| 강조하다 | 65W isolated sensor LED driver,PWM dimming terminal LED driver,1200-1600mA current sensor driver |
||
제품 설명
65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
Product Features
- Isolated two-stage circuit frame, full dimming and flicker-free
- Support DIP switches to set the current gear
- Support 12V auxiliary power supply, with sensing split head can achieve integrated sensing function
- Equip with PWM dimming control port
- Suitable for various microwave sensors or wireless smart modules
Parameters
| Product series | MLC60C-PS |
| Rated voltage | 220-240V AC 50Hz/60Hz |
| Stand-by power | ≤0.5W(Equip with Merrytek 5.8Ghz sensing split head) |
| Surge | 1KV(L/N,EN61000-4-5) |
| Power factor | ≥0.95 (230V Max load) |
| Input current | ≤0.23A @230VAC full load |
| Inrush current | <20A(100us half-current)@230V AC |
| Working efficiency | ≥86% (230V Max load) |
| Output | |
| Working model | CC |
| Type of load | LED |
| Flick | ≤5% |
| Constant current accuracy | Constant current accuracy ±5% |
| Auxiliary driver parameters | 12VDC Current: 100mA Max |
| No-load output voltage | 60VDC Max |
| Full load power | 65W Max |
| Load current | 1200mA / 1250mA / 1300mA 1350mA / 1400mA / 1450mA 1500mA / 1550mA / 1600mA |
| Load output voltage range | 1200mA / 15-42VDC 1250mA / 15-42VDC 1300mA / 15-42VDC 1350mA / 15-42VDC 1400mA / 15-42VDC 1450mA / 15-42VDC 1500mA / 15-42VDC 1550mA / 15-42VDC 1600mA / 15-40VDC |
| Abnormality Protection Requirements | |
| Protection mode | Input overvoltage protection | Input no-load protection | Input short circuit protection |
| Environmental Requirements | |
| Operating temperature | Built-in: -25...+50℃ |
| Maximum shell temperature(Tc) | 85℃ |
| Storage temperature/humidity | -40℃...+80℃ Humidity: ≤85% (non-condensation) |
| Certificate Standards | |
| Certificate | CE,UKCA,SAA |
| Environmental requirement | RoHS2.0, Reach requirement |
| Safety standards(LVD) | EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Withstand voltage | Primary to secondary: 3.75KVAC Primary to ground :1.5KVAC |
| IP Rating | IP20 |
| Product Category | Class I |
| Others | |
| Wiring method | Press terminal, wire diameter:0.5-1.0mm2 |
| Installation | Built-in |
| Package | PE bag clapboard, carton(K=A) |
| Net weight | 225±5g |
| Lifetime | 5 years warranty@Ta 230V full load |
Split Head Collocation
MC002D 6
MC087D 1
MC087D RC
MC131D A&B
MC137D A&B
MSA207D
MC068D RC
MC116D RC
MC116D B1
Product Information
Wiring and function
Dimension (Unit:mm)
Parameter Curve
Life Time Curve
Output Current Setting
| Output current | Voltage range | S1 | S2 | S3 | S4 |
|---|---|---|---|---|---|
| 1200mA | 15-42V | - | - | - | - |
| 1250mA | 15-42V | - | - | - | ON |
| 1300mA | 15-42V | - | - | ON | - |
| 1350mA | 15-42V | - | - | ON | ON |
| 1400mA | 15-42V | - | ON | ON | - |
| 1450mA | 15-42V | - | ON | ON | ON |
| 1500mA | 15-42V | ON | - | ON | ON |
| 1550mA | 15-42V | ON | ON | ON | - |
| 1600mA | 15-40V | ON | ON | ON | ON |
Initialization
When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.
Default Setting
Adjust the corresponding current gear according to the order or customer demand.
Application Notice
- Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
- The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
- The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
- After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
