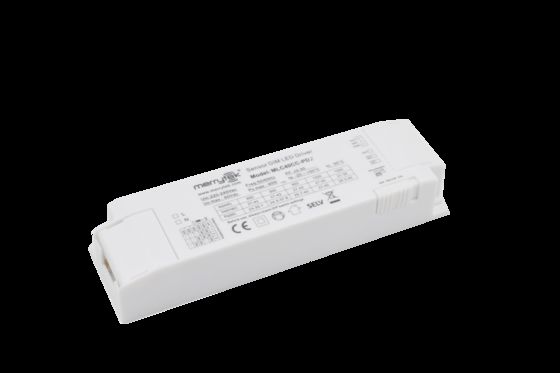

40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 전압 격렬 | 220-240Vac 50Hz /60Hz | 대기 전력 | ≤0.5W (감지 분할 헤드가없는 장비 없음) |
|---|---|---|---|
| 전력 계수 | ≥0.95(230V 최대 부하) | 무주한 전류 | ≤30a ° (100US 반전차류)@230V ac |
| 작업 모드 | CC | IP 등급 | IP20 |
| 일생 | 5years 보증@ta50/tc70 ℃, 230v 전체 부하 | ||
| 강조하다 | 40W isolated LED driver,sensor DIM LED driver with warranty,LED driver color temperature selection |
||
제품 설명
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
Product Features
- Isolated two-stage circuit frame, full dimming and flicker-free
- Support DIP switches to set the current gear; Slide Switches to select the CC/CW/WW
- Support 8.5V auxiliary power supply, with sensing split head can achieve integrated sensing function
- Equip with PWM dimming control port
- Suitable for various microwave sensors or wireless smart modules
Parameters
| Input | |
|---|---|
| Rated voltage | 220-240V AC 50Hz/60Hz |
| Stand-by power | ≤0.5W(No Equip with sensing split head) |
| Surge | 1KV(L/N,EN61000-4-5) |
| Power factor | ≥0.95 (230V Max load) |
| Input current | ≤0.23A @230VAC full load |
| Inrush current | ≤30A(100us half-current)@230V AC |
| Working efficiency | ≥86% (230V Max load) |
| Output | |
| Working mode | CC |
| Type of load | LED |
| Flick | ≤5% |
| Constant current accuracy | Constant current accuracy ±5% |
| Auxiliary driver parameters | 8.5 ±0.5VDC Current: 100mA Max |
| No-load output voltage | 60VDC Max |
| Full load power | 40W Max |
| Load current | 900mA/950mA/1000mA/1050mA |
| Load output voltage range | 900mA / 20 -42VDC 950mA / 20-45VDC 1000mA /20-40VDC 1050mA /20-38VDC |
| Abnormality Protection Requirements | |
| Protection mode | Input overvoltage protection; Input no-load protection no-load protection Input short circuit protection |
| Environmental Requirements | |
| Operating temperature | Built-in:-25…+60℃ |
| Tcase-max | 85℃ |
| Storage temperature/humidity | -40℃…+80℃ Humidity: ≤85% (non-condensation) |
| Certificate Standards | |
| Certificate | CE,UKCA,SAA |
| Environmental requirement | RoHS2.0, Reach requirement |
| Safety standards(LVD) | EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Withstand voltage | Primary to secondary: 3.75KVAC |
| IP Rating | IP20 |
| Product Category | Class II |
| Others | |
| Wiring method | Press terminal, wire diameter:0.5-1.0mm2 |
| Installation | Built-in |
| Package | PE bag clapboard, carton(K=A) |
| Net weight | 135 ±5g |
| Lifetime | 5years warranty@Ta50/TC70℃,230V full load |
Product Information
Wiring and function
Dimension (Unit:mm)
Parameter Curve
Life Time Curve
Output Current Setting
| Output current | Voltage range | S1 | S2 |
|---|---|---|---|
| 1050mA | 20-38V | ON | ON |
| 1000mA | 20-40V | ON | - |
| 950mA | 20-42V | - | ON |
| 900mA | 20-42V | - | - |
Initialization
After power-on, it is half bright, and after self-test, it enters the 0-10V port voltage setting brightness (suspended for full bright).
Default Setting
Adjust the corresponding current gear according to the order or customer demand.
Application Notice
- Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
- The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
- The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
- After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
