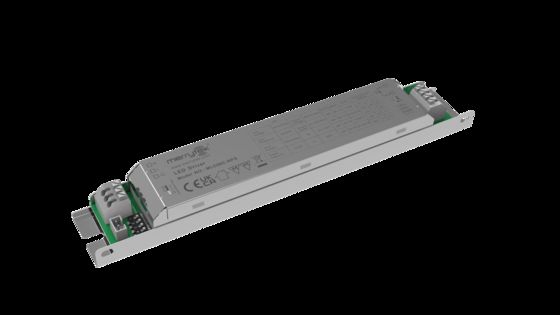

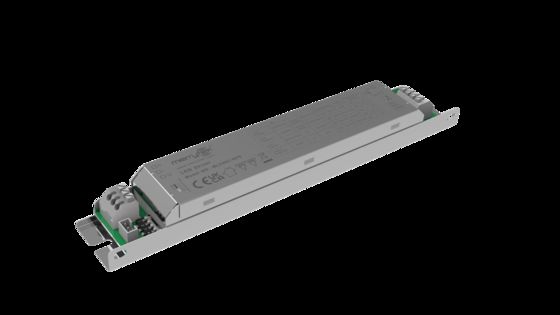

60W Long Strip Sensor Dim Led Driver, 200-350mA Output, Flicker-free, Built-in Installation
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 정격 전압 | 198-264vac 50Hz/60Hz | 대기 전력 | ≤0.3W |
|---|---|---|---|
| 서지 전류 | <22a (100us Half-Current) @230vac | 작동 온도 | -25C~+50C |
| 자격증 | CE \ SAA | 일생 | 5 년 보증 (TA = 50 ℃@230vac 전체 부하) |
| 강조하다 | 60W dimmable LED driver,flicker-free sensor driver,built-in installation LED driver |
||
제품 설명
60W Long Strip Sensor Dim LED Driver, 200-350mA Output, Flicker-free, Built-in Installation
Product Features
- Metal strip non-isolated power supply; flicker-free PWM dimming power supply
- 12V auxiliary power supply; compatible with different sensor and wireless smart modules
- High performance with high efficiency, high PF value and low stand-by power
- Conforms to new ERP standard and complies with CE, SAA certification standards
- Built-in power supply suitable for strip lamps; parameters adjustable via DIP switches
Technical Parameters
| Product No. | MLC60C-NPS | |
|---|---|---|
| Input | Voltage Range | 198-264Vac 50Hz/60Hz |
| Input Current | 0.3A (@230Vac full load) | |
| Operating Voltage | 220-240Vac 50Hz/60Hz | |
| No-load Power | ≤0.3W | |
| Stand-by Power | ≤0.3W | |
| Power Factor | ≥0.95 (@230Vac full load) | |
| Working Efficiency | 90% (230V Max load) | |
| THD | ≤20%(@230V ac full load) | |
| Leak Current | <0.5mA/240V | |
| Surge Current | <22A (100us half-current) @230Vac | |
| Output | Working model | Constant Current |
| Type of load | LED | |
| Start Time | ≤1S (@230Vac full load) | |
| Ripple Current | ±5% (@230Vac full load, LED full load) | |
| Strobe Frequency Requirement | Flicker free (≤5%) | |
| No-load Output Voltage | 200Vdc Max | |
| Load Power | 61.25W Max | |
| Connecting Port | PWM | Yes (5V and 3.3V PWM signals are compatible) |
| Port Connecting Method | 3PIN PH2.0 row needles terminal | |
| Auxiliary Power Supply | 12V±1V, Max100mA | |
| Protection Requirements | Operating Temperature/Humidity | -25℃~+50℃ |
| Storage Temperature/Humidity | -40℃~+80℃ Humidity: 85% (Non-condensing) | |
| Atmospheric Pressure | 86~106KPa | |
| Lightning Surge | LN:1KV | |
| Certificate Standards | EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |
| Environmental requirement | Compliant to RoHS | |
| Certificate | CE SAA | |
| Output Current Accuracy | ±5% | |
| Wiring | Press terminal, wire diameter: 0.5-1.0mm² | |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Built-in | |
| Dimension | 195*30*21mm | |
| Net Weight | 138g±3g | |
| Warranty | Five years warranty (Ta=50℃@230Vac full load) | |
Product Characteristic Testing
Product Information
Installation
DIP Switch Setting
| I rated (CC) | 1 | 2 |
|---|---|---|
| 350mA | ON | ON |
| 300mA | ON | - |
| 250mA | - | ON |
| 200mA | - | - |
Initialization
After power-on, it is half bright, and after self-test, it enters the 0-10V / PWM port voltage setting brightness (suspended for full bright).
Application Notice
- Please use product according to specifications. Failure may occur if the product is used beyond the service conditions.
- Connect loads firstly before turning on the input power; otherwise, load may be damaged.
- After the LED drive input power is off, the output end still has residual voltage, which can be maintained for about 3 minutes.
- This product is a non-isolated power supply:
- To avoid electric shock, do not operate with power on before connecting load.
- To avoid damaging sensing head, power off is also required before connecting.
